Aviation Industry Park Drone Delivery Center Project

Lamp Data Sheet

Indoor Space 1

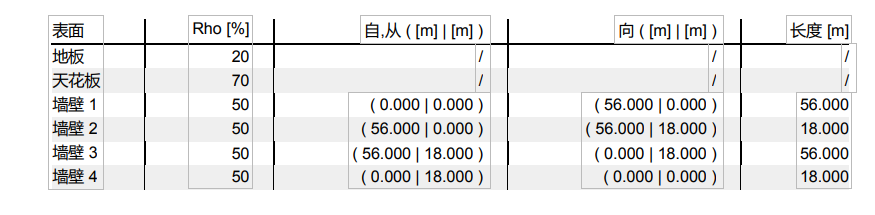

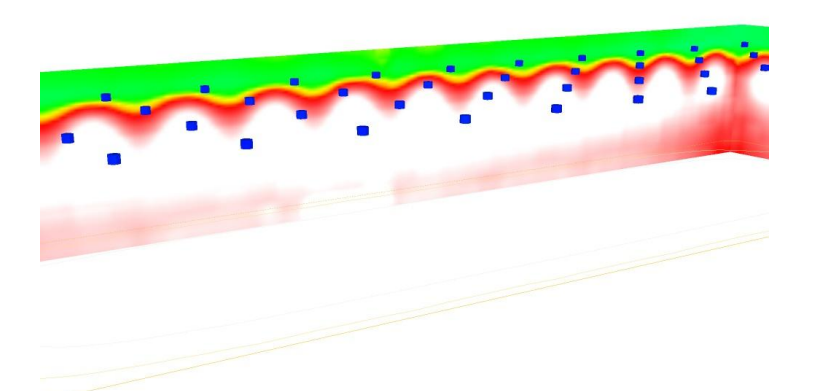

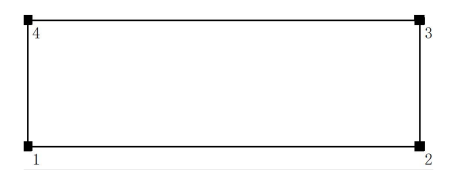

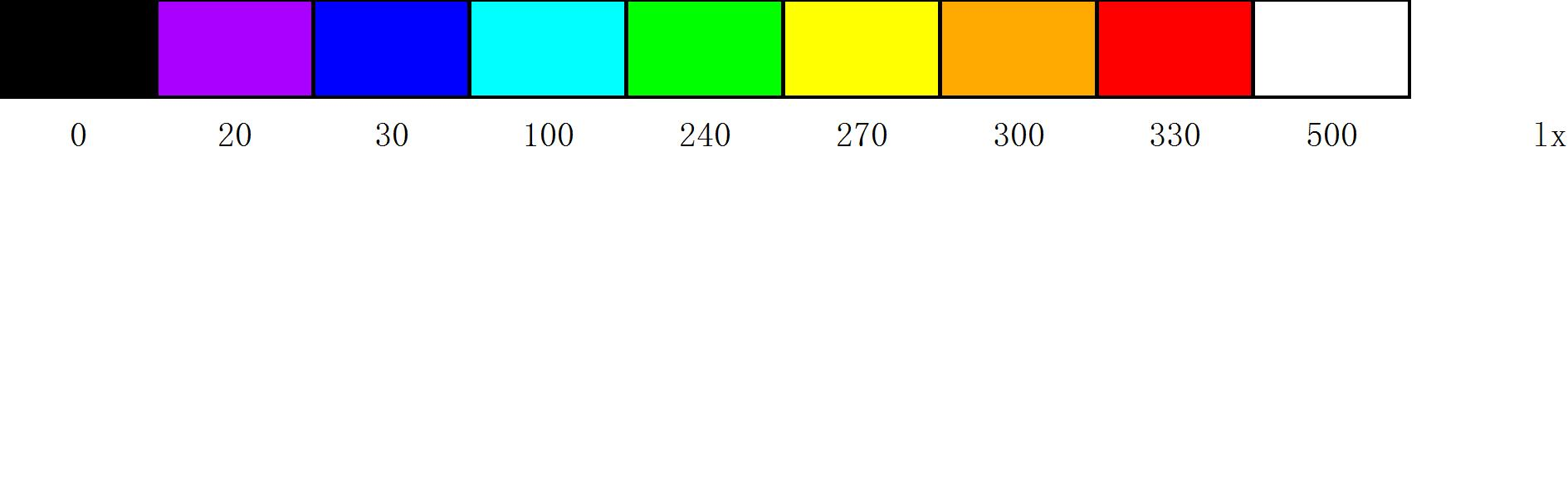

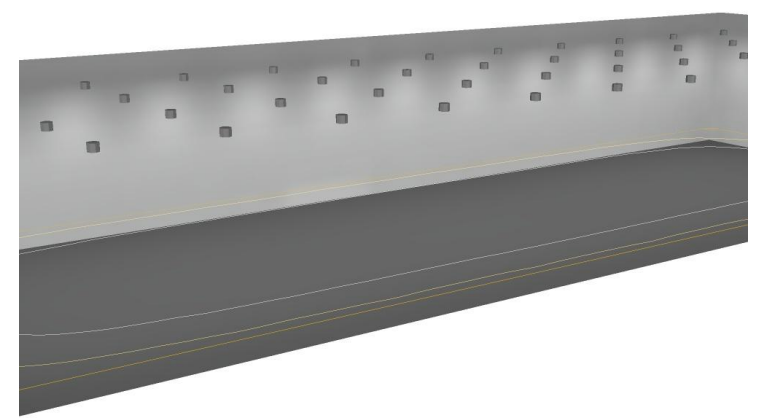

Input the agreed lighting fixture table, plan view, lighting (location map), metering results, 3D rendering, pseudo color representation, spatial surface

Working place

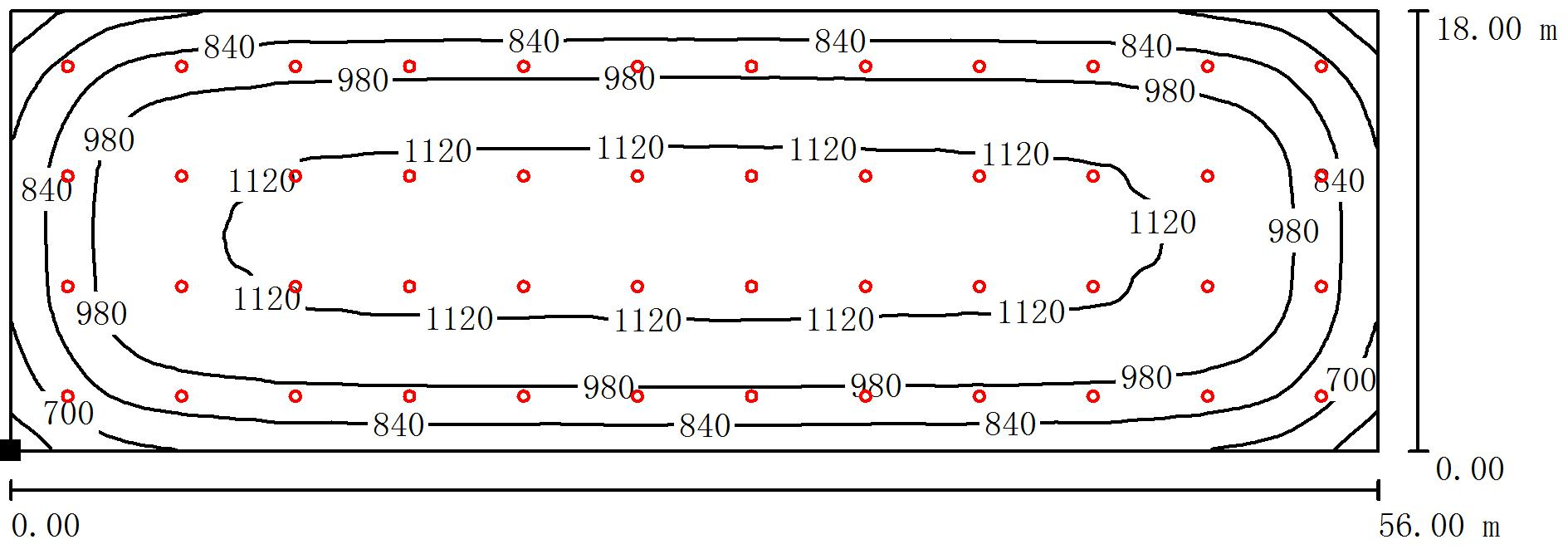

Iso illuminance map (illuminance)

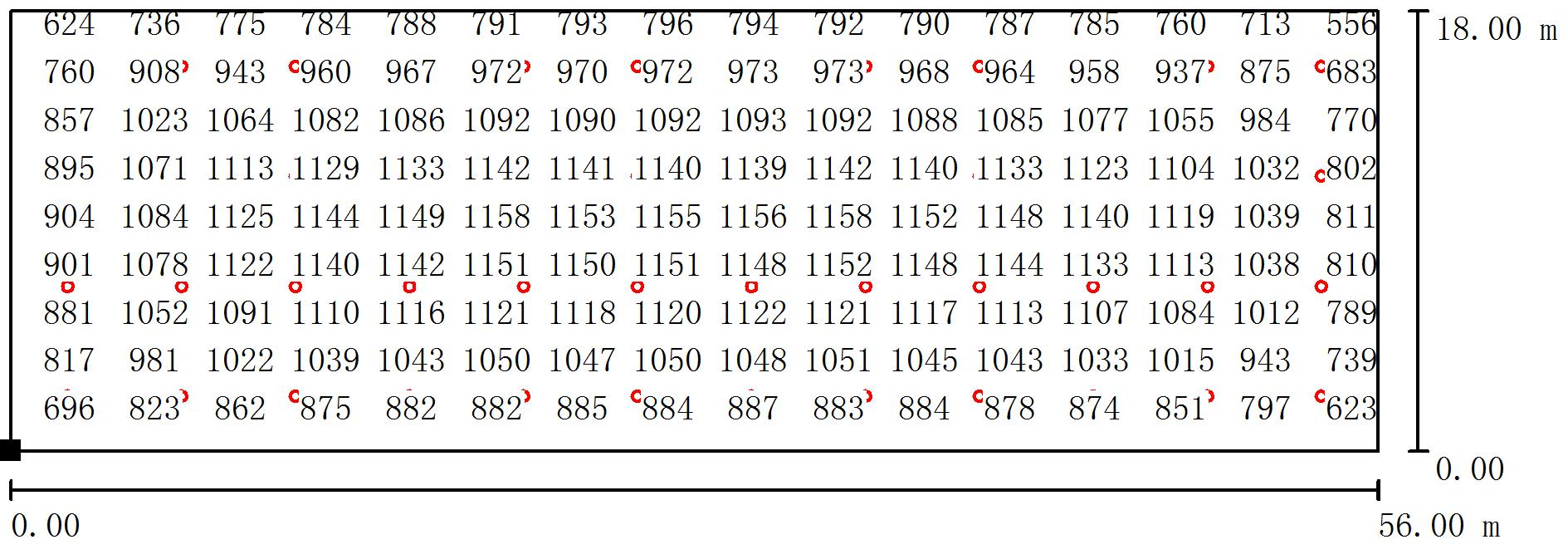

point illuminance value (illuminance)

Floor

Iso illuminance map (illuminance)

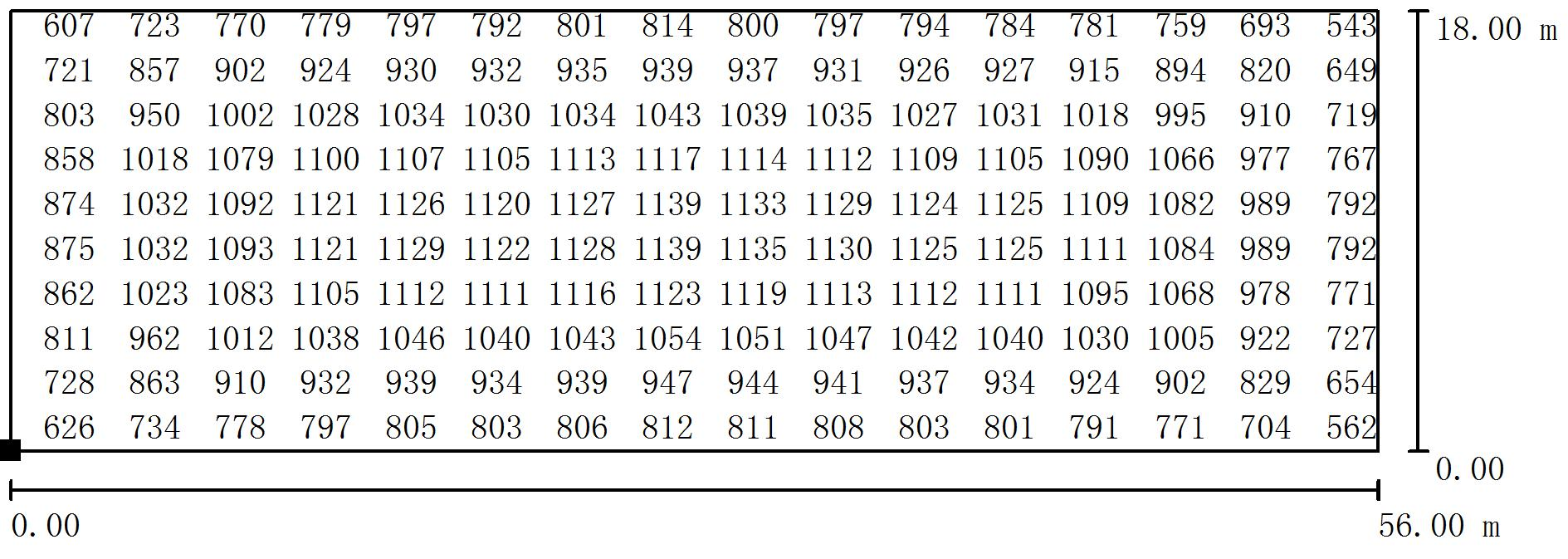

point illuminance value (illuminance)

roof-top

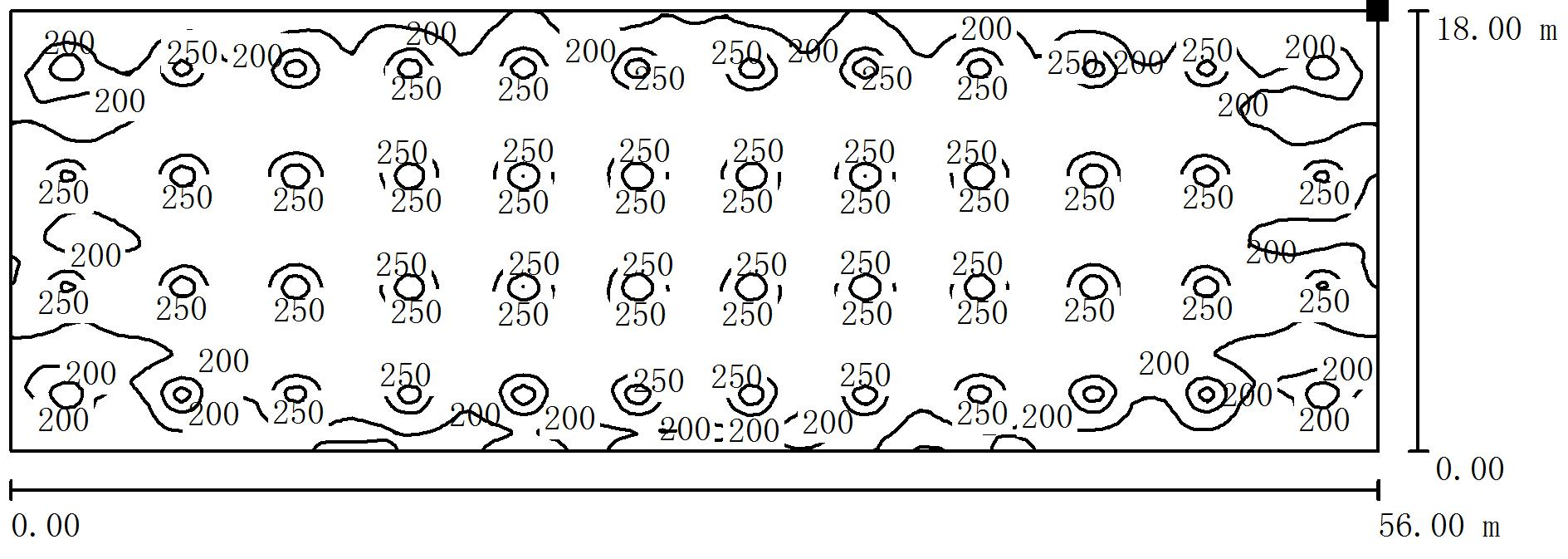

Iso illuminance map (illuminance)

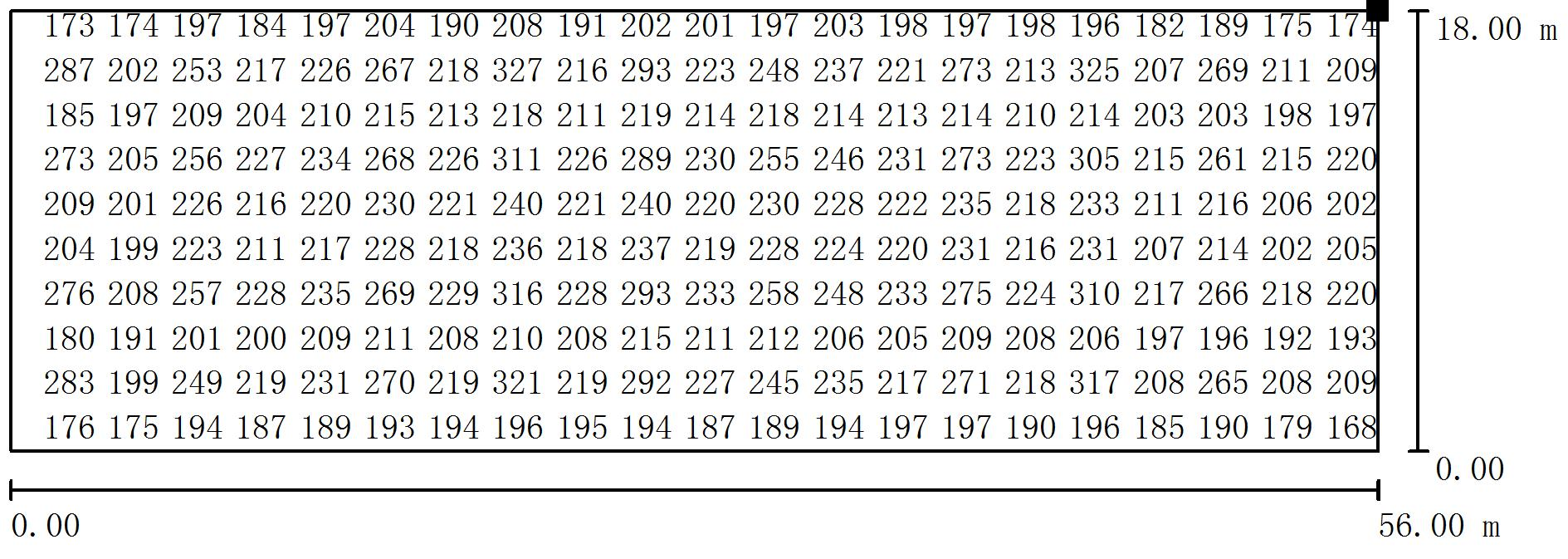

point illuminance value (illuminance)

Wall one

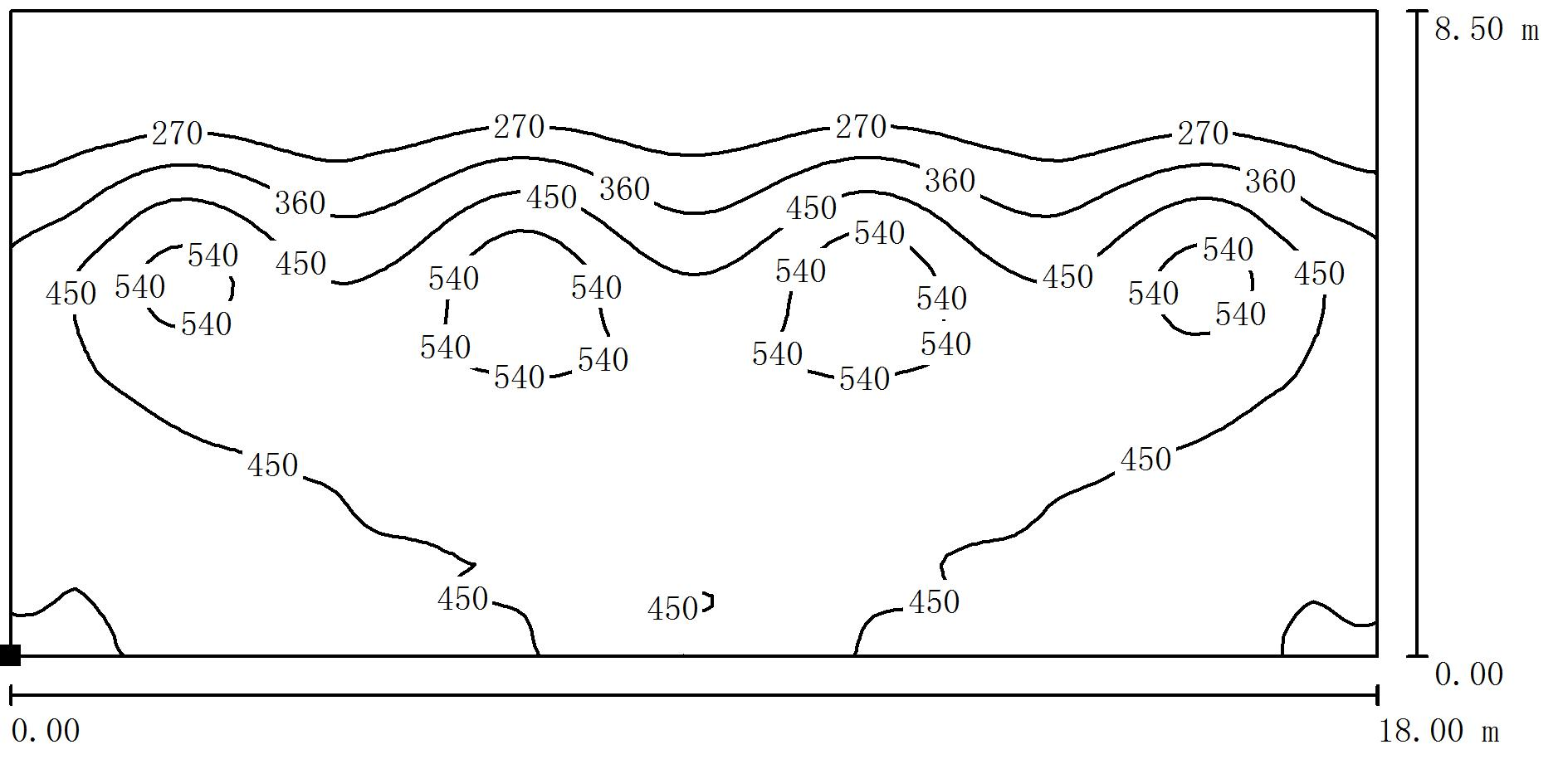

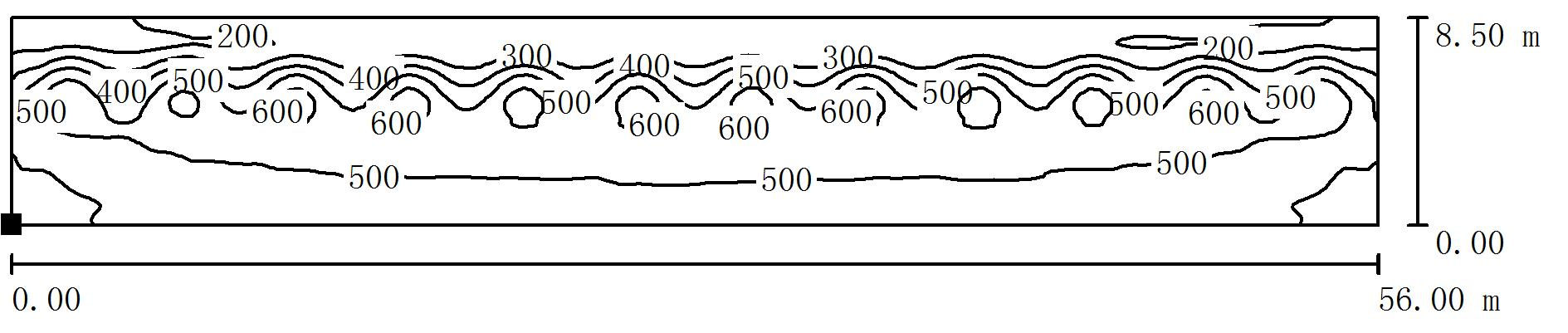

Iso illuminance map (illuminance)

point illuminance value (illuminance)

Wall two

Iso illuminance map (illuminance)

point illuminance value (illuminance)

Wall three

Iso illuminance map (illuminance)

point illuminance value (illuminance)

Wall fourth

Iso illuminance map (illuminance)

point illuminance value (illuminance)

DIALux

Please refer to our lamp catalog for lamp images

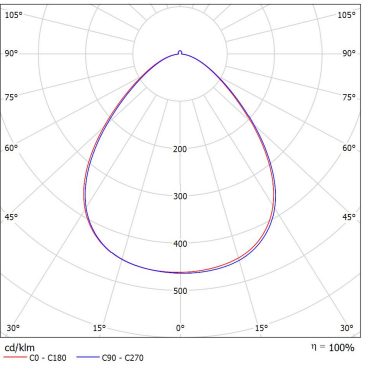

 Lighting source parameter 1

Due to the loss of symmetry properties, the UGR glare table for this luminaire cannot be displayed.

The classification of lighting fixtures is based

on CIE: 97CIE Flux code: 63 90 98 97 100

Working face height:

0.850 m Boundary: 0.000 m

Maintenance coefficient: 0.80

Space height: 8.500 m Area: 1008.00 m ²

Indoor Space 1/Lighting Fixture Table

Product number: Lighting current (lamp): 29021 lm Lighting current (light source): 29023 lm

 Wattage: 209.7 W Classification of lamps according to CIE: 97CIE

Flux code: 63 90 98 97 100 Accessories: 1 x 200 W (correction factor 1.000)

Total optical flux: Total load: Maintenance coefficient: Boundary:

1393004 lm10065.6 W0.80

0.000 m

Consistency on the working surface minimum/average illuminance: 0.478 (1:2) minimum/maximum illuminance: 0.405 (1:2)

Actual efficiency value: 9.99 W/m ² = 1.02 W/m ²/ 100 lx (area: 1008.00 m) ²)

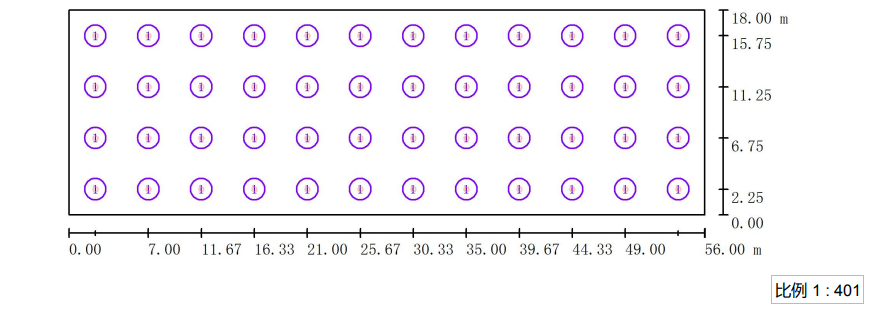

Unit: Lux, Scale 1: 401

The position of the inner surface of the space: marked points: (0.000 m, 0.000 m, 0.850 m)

Grid: 128 x128 points

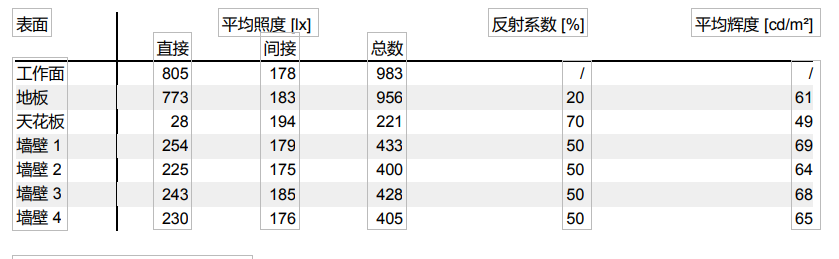

Average illuminance [lx]  Minimum illuminance [lx]   Minimum illumination/average illumination Minimum/Maximum Illumination

983                      470                   0.478                                                                                                                         0.405

Unable to display all calculated values

Unable to display all calculated values

The position of the inner surface of the space:

marked points: (0.000 m, 0.000 m, 0.850 m)

Grid: 128 x 64 points

Average illuminance [lx]  Minimum illuminance [lx]   Minimum illumination/average illumination

956

Minimum/Maximum Illumination

0.405

roof-top

The position of the inner surface of the space:

marked points: (56.000 m, 0.000 m, 8.500 m)

Grid: 128 x 128 points

Average illuminance [lx ] Min illuminance [lx]  Max illuminance [lx]  Min illuminance/Average illuminance Min illuminance/Max illuminance

wall 1

Wall 2

Wall 1 indoor

And so on, then is the programme forAviation Industry Park Drone Delivery Center Project, then please send us your  requirements for the industry lighting, we will provide you details professional lighting programme for your reference.

And we youco lighting have many kinds of industry engineering LED lights for the right project, more of models of our lights refer to our product page, please check and send me information.
