500W high pole lamp, integrated die cast with fan and heat exchanger, with high structural stability and good thermal conductivity |youcolight

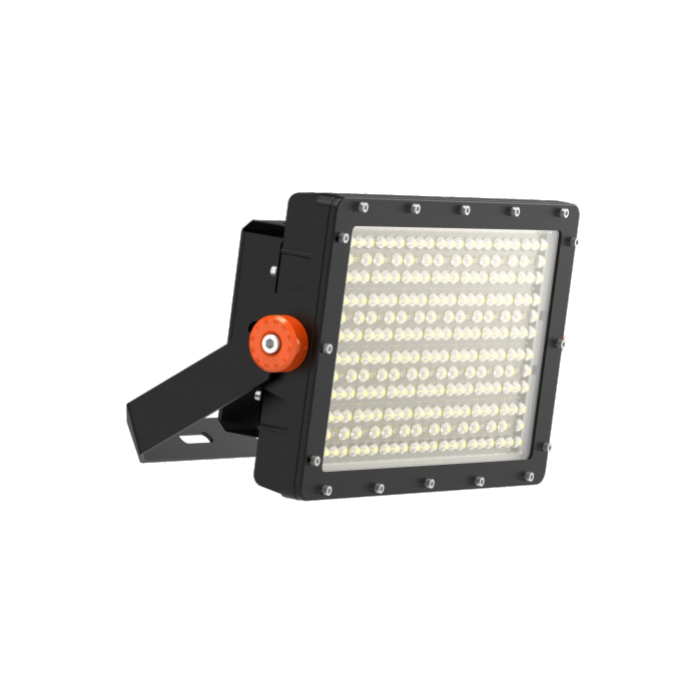

HIGH POLE LAMP 500W SERIES

1.500W high pole lamp, integrated die cast with fan and heat exchanger, with high structural stability and good thermal conductivity

2. Input voltage: AC85-277V 50/60Hz. The light source adopts high luminous efficiency 10 core 5050 beads, with a luminous efficiency of 150lm/above and a color temperature of 2700K-6500K optional

3. The shell fan heat exchanger uses ADC12 die cast aluminum with good thermal conductivity, and the surface undergoes special oxidation and thermal treatment to improve the heat generated by the lamp panel and power supply inside the lamp. It can quickly export the heat outside the lamp, reduce the temperature difference, and lower the junction temperature of the light source, ensuring a 3% light attenuation of the light source and a lifespan of over 50000 hours

4. Waterproof level: IP65, power factor 0.95, multiple beam angles optional, can be used normally in environments ranging from -25 ° C to -50 ° C

Features Parameters Product Tags

Features

1. Die cast aluminum fan heat exchanger, excellent fan heat performance, compact structure, low temperature difference between lamp panel and radiator
2. Integrated cable slot for simpler cable layout
3. Optical PC lens with a transmittance of up to 94%
4. Brand power supply and driver ensure product quality and lifespan, using reinforced 4mm thick bracket with 180 degree adjustable precision installation, adding glass frame suitable for various harsh environments, and able to withstand typhoon level 17
5. Luminescent angle: 15/25/45/60/90 degrees optional
6. Power options: dimming and color adjustment, APP, Bluetooth, and DMX512 intelligent control

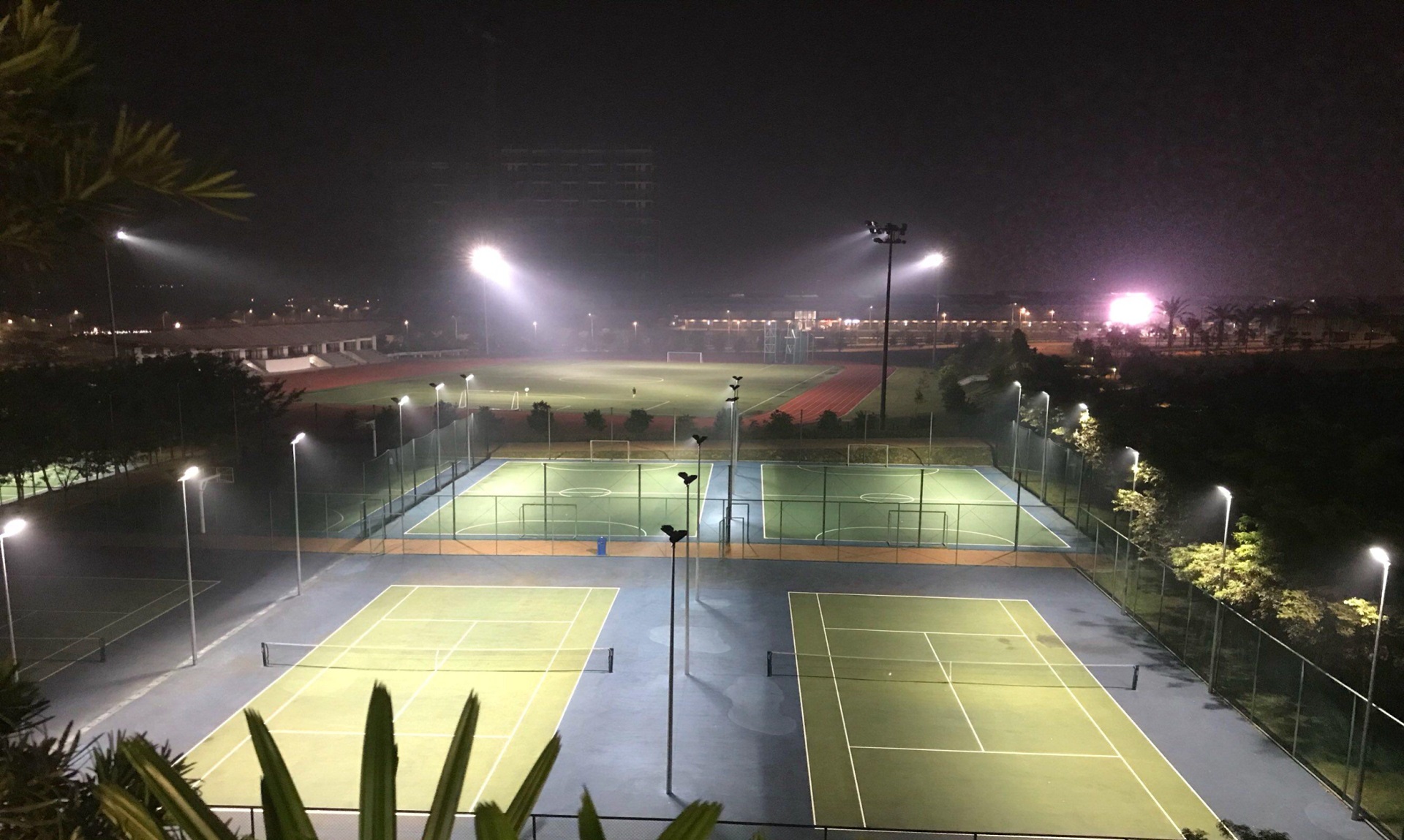

7. Application scenarios: Stadium, sports field, park, urban anti-aircraft gun lighting, etc

Parameters

Product Model	XJX-CL500W	XJX-CL1000W	XJX-CL1500W	XJX-CL2000W
Power	500W	1000W	1500W	2000W
Luminous flux	75000lm	150000lm	225000lm	300000lm
Beam angle	30°/60°/90°/120°	30°/60°/90°/120°	30°/60°/90°/120°	30°/60°/90°/120°
Luminous efficacy	150lm/w(Avaible 170lm/w)	150lm/w(Avaible 170lm/w)	150lm/w(Avaible 170lm/w)	150lm/w(Avaible 170lm/w)
CCT	2700K SW/ 3000K WW/4100K NW/5000K DW/5700K CW/6500K SCW
CRI	Ra≥80(≥70)	Ra≥80(≥70)	Ra≥80(≥70)	Ra≥80(≥70)
Life span	50.000hours at 25C°	50.000hours at 25C°	50.000hours at 25C°	50.000hours at 25C°
Volatage	100-277VAC*50-60Hz, 200-480VAC/50/60Hz
Luminous source	5050SMD LED	5050SMD LED	5050SMD LED	5050SMD LED
IP rating	IP65	IP65	IP65	IP65
PF	≥0.95	≥0.95	≥0.95	≥0.95
Warranty	5 Years	5 Years	5 Years	5 Years
LED Qty	224pcs	448pcs	672pcs	896pcs
N.W	9.3kg	21.5kg	21.2kg	43.5kg
G.W	10.8kg	24.5kg	35.8kg	49.2kg

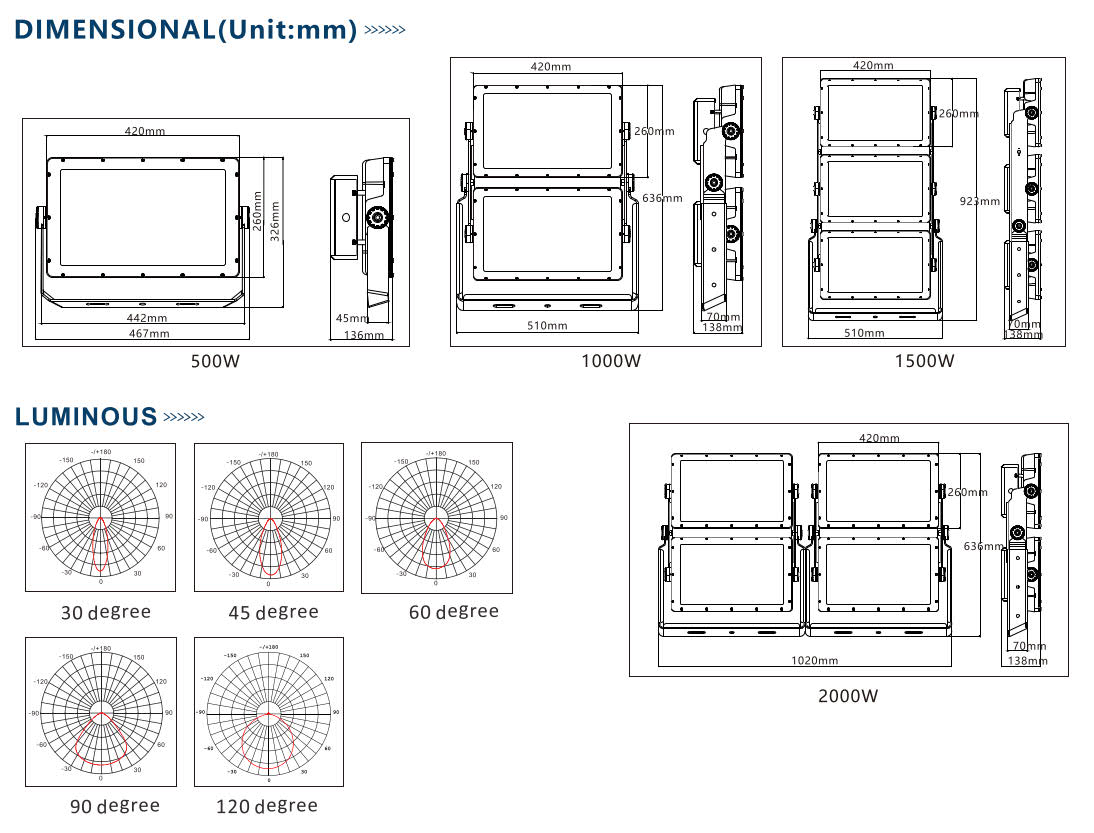

Product Size(mm)	L510W375H175	L868W560H175	L932W560H175	L1070W676H175

Product Tags

Public lighting
