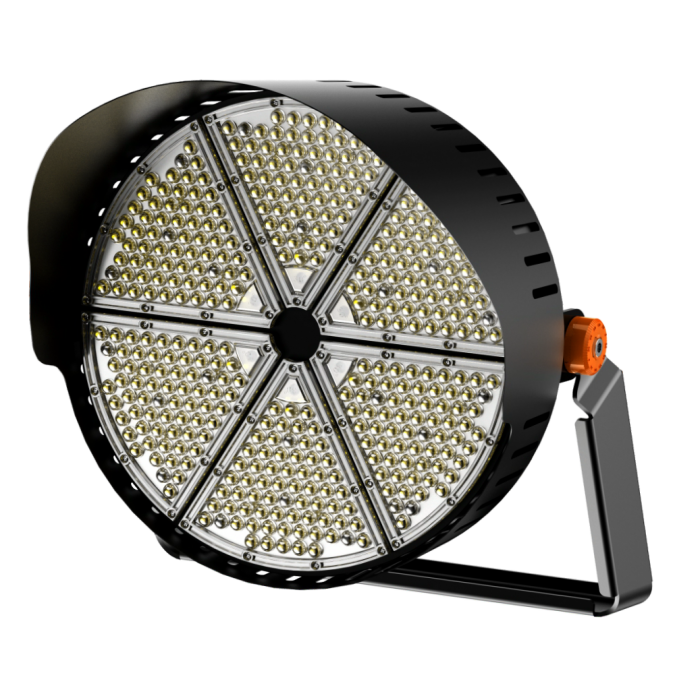

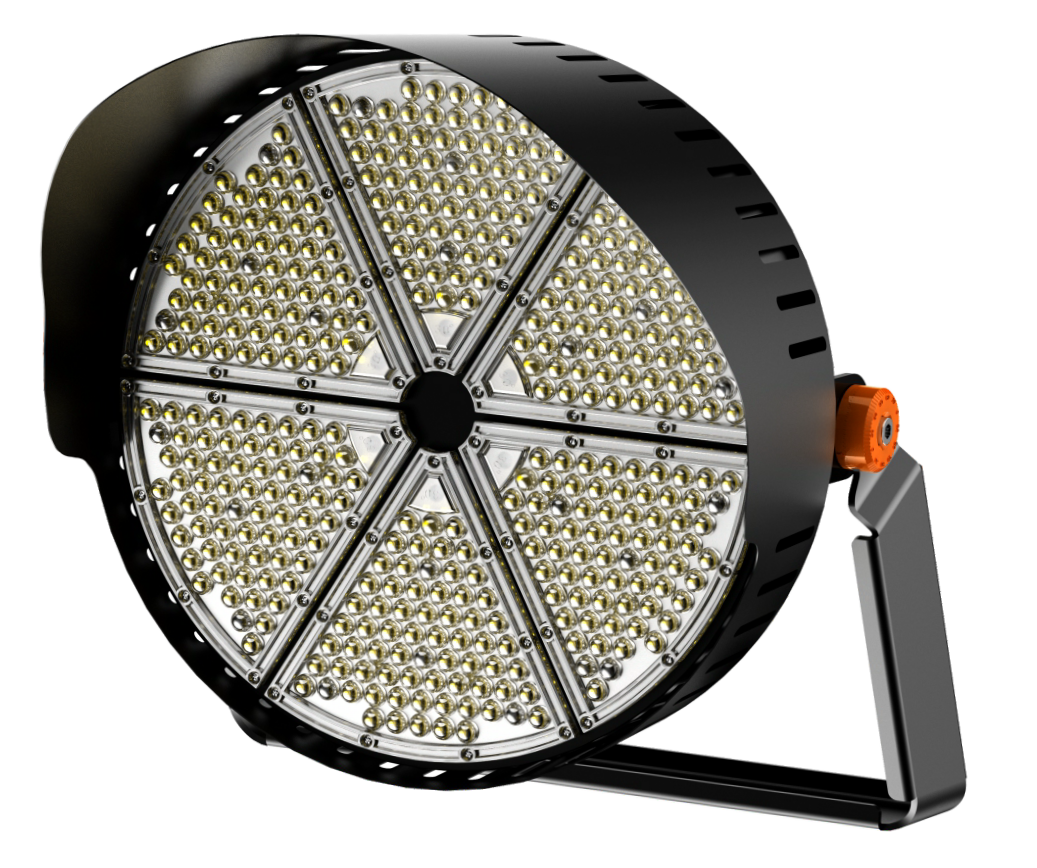

Round shade HIGH POLE LAMP 500W SERIES

1,500W stadium light, modular design, with adjustable angles for each module and the entire light. The modules can be freely combined according to customer needs, which is simple, flexible, and versatile

2. Input voltage: AC85-277V 50/60Hz. The light source adopts high luminous efficiency 10 core 5050 beads, with a luminous efficiency of 150lm/above and a color temperature of 2700K-6500K optional

3. The shell fan heat exchanger uses ADC12 die cast aluminum with good thermal conductivity, and the surface undergoes special oxidation and thermal treatment to improve the heat generated by the lamp panel and power supply inside the lamp. It can quickly export the heat outside the lamp, reduce the temperature difference, and lower the junction temperature of the light source, ensuring a 3% light attenuation of the light source and a lifespan of over 50000 hours

4. Waterproof level: IP65, power factor 0.95, multiple beam angles optional, can be used normally in environments ranging from -25 ° C to -50 ° C

Features Parameters Product Tags

Features

1. Die cast aluminum fan heat exchanger, excellent fan heat performance, compact structure, low temperature difference between lamp panel and radiator

2. Integrated cable slot for simpler cable layout

3. Optical PC lens with a transmittance of up to 94%

4. Brand power supply and driver ensure product quality and lifespan, using reinforced 4mm thick bracket with 180 degree adjustable precision installation, adding glass frame suitable for various harsh environments, and able to withstand typhoon level 17

5. Luminescent angle: 30/45/60/90/120 degrees optional

6. External 10KV lightning arrester provides additional protection against lightning surges

7. Power options: dimming and color adjustment, APP, Bluetooth, and DMX512 intelligent control

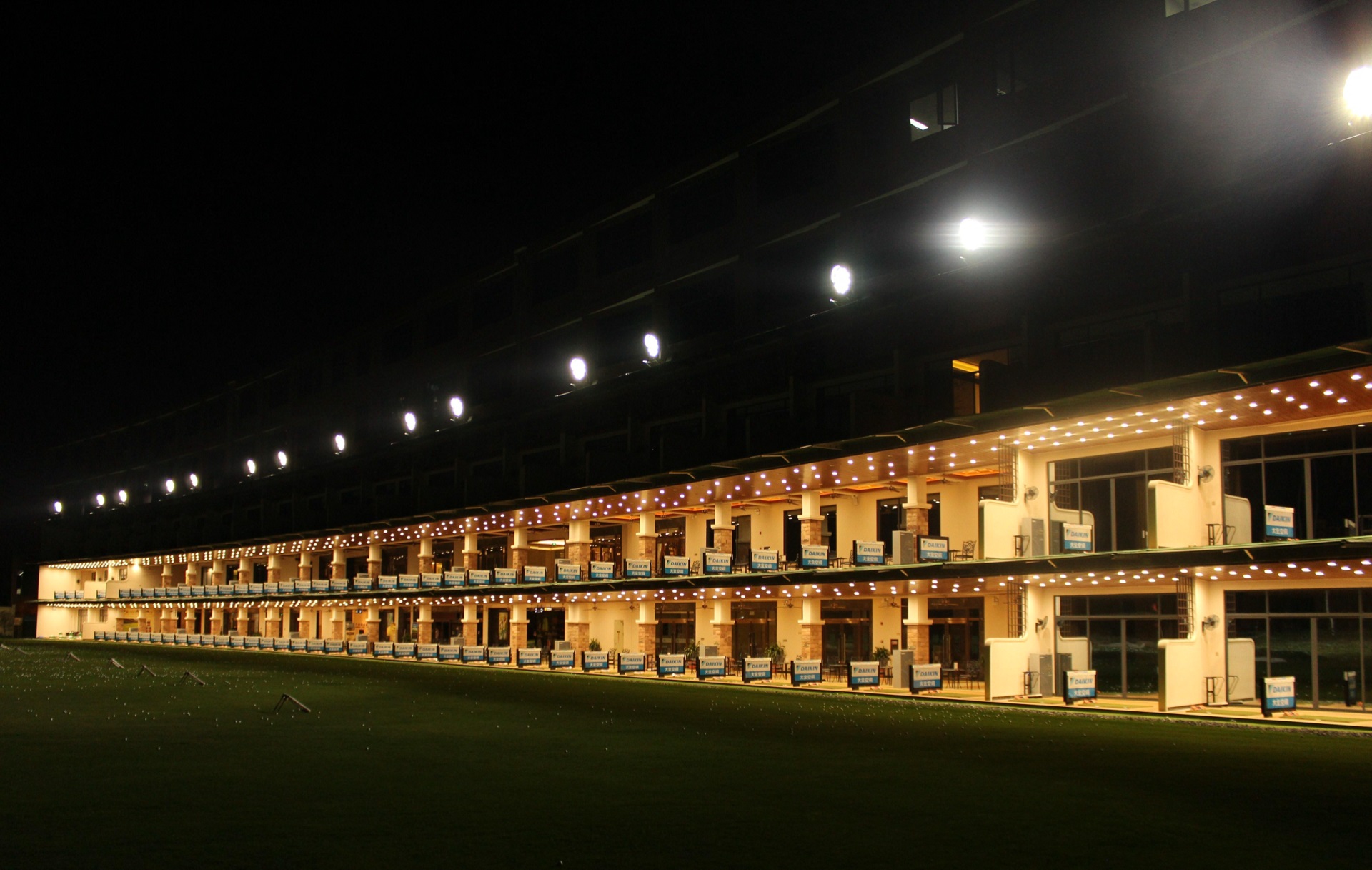

8. Application scenarios: tunnels, stadiums, sports fields, parks, urban anti-aircraft gun lighting, etc
