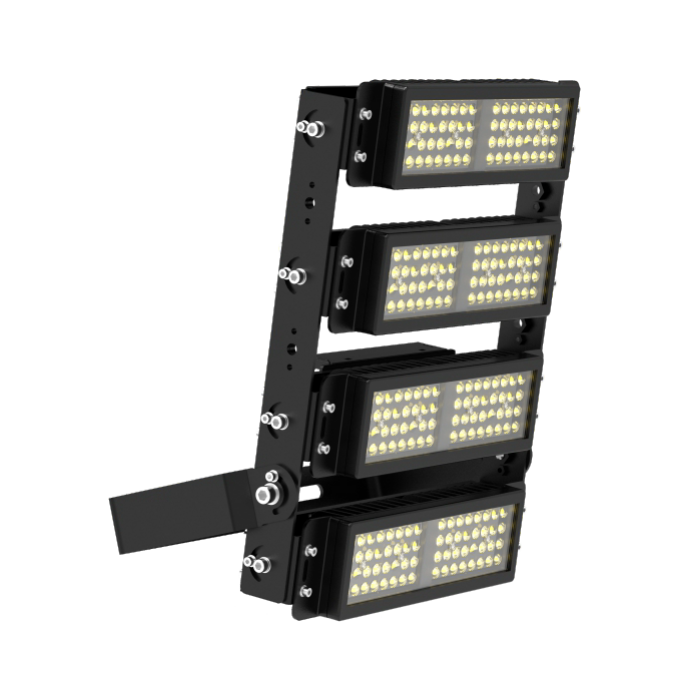

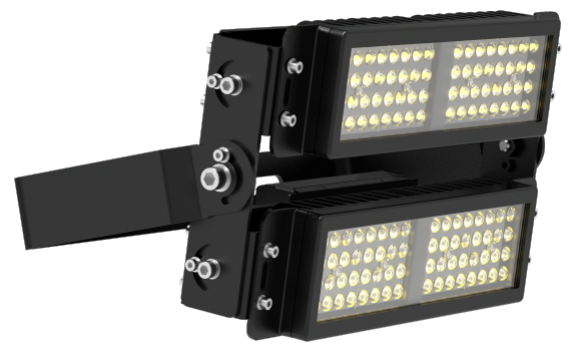

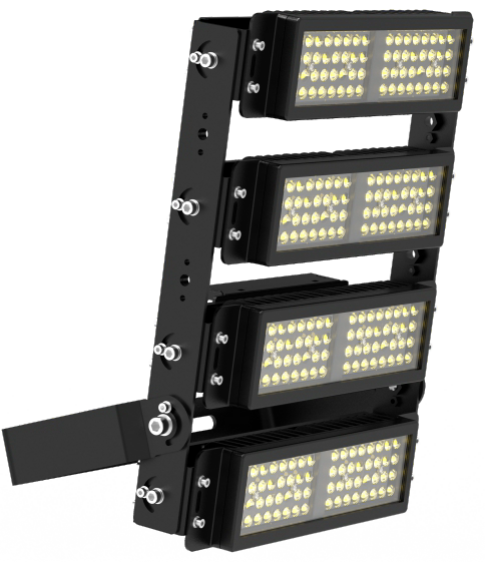

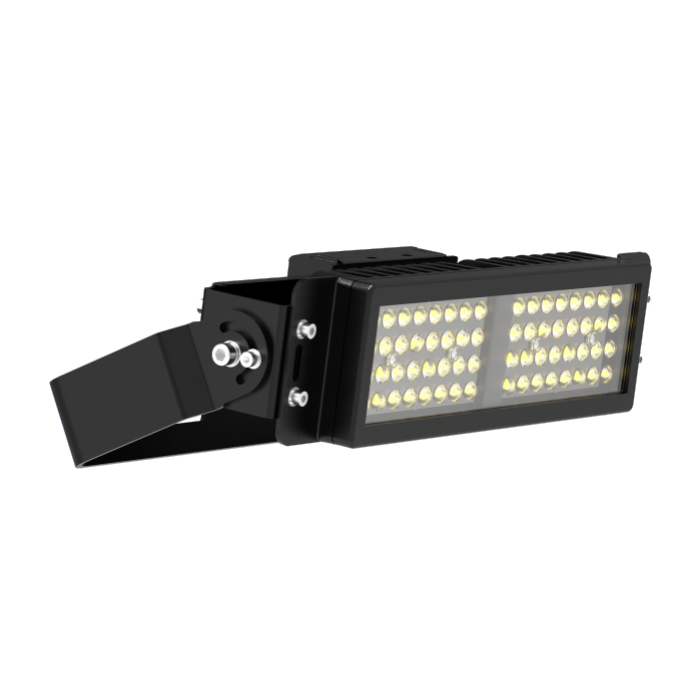

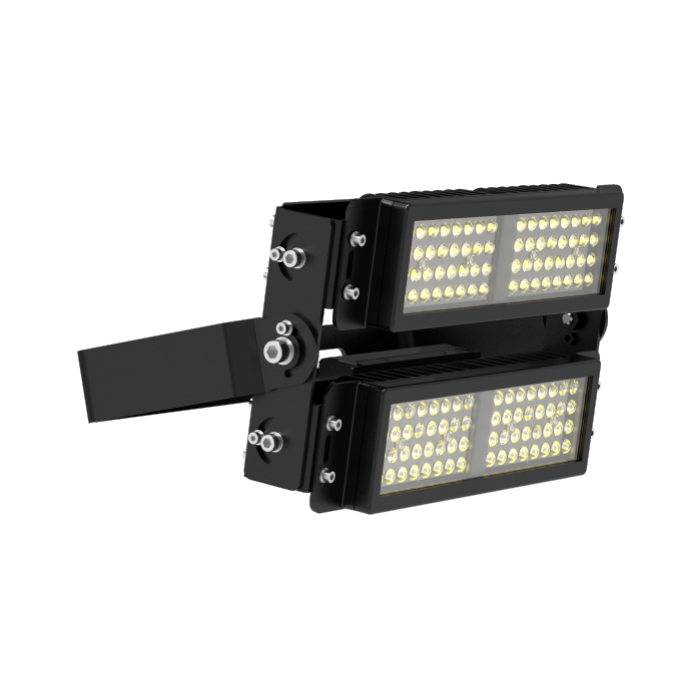

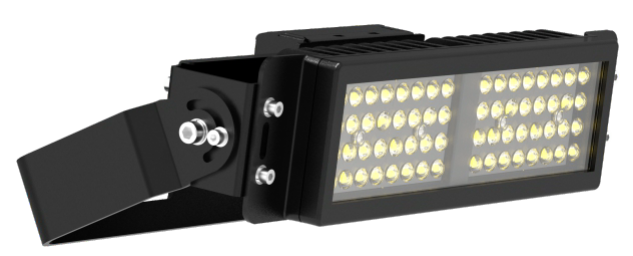

High efficiency LED Modular Design CCT 2700K-6500K  Adjustable Angles Tunnel Light:
1.   Adopt with world famous brand high power LED light driver; and 2835/3030/SMD LED

2.   Super bright, reach high effieciey  Input voltage: AC85-277V 50/60Hz. The light source adopts high luminous efficiency 2835/3030 lamp beads,with a luminous efficiency of 150lm/above and a color temperature of 4000K-6500K

3.  CCT 2700K SW/3000K WW/4100K NW/5000K DW/5700K CW/6500K SCW

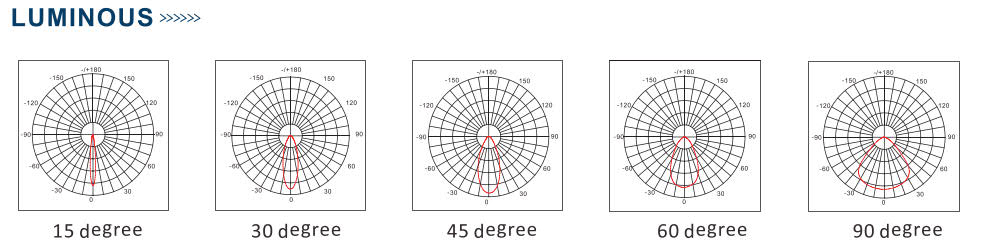

4.   Beam angle: 30°/60°/90°/120°

5.   Luminousefficacy150m/w (avaible 170lm/w150m/w (avaible 170lm/w150m/w (avaible 170lm/w150m/w (avaible 170lm/w

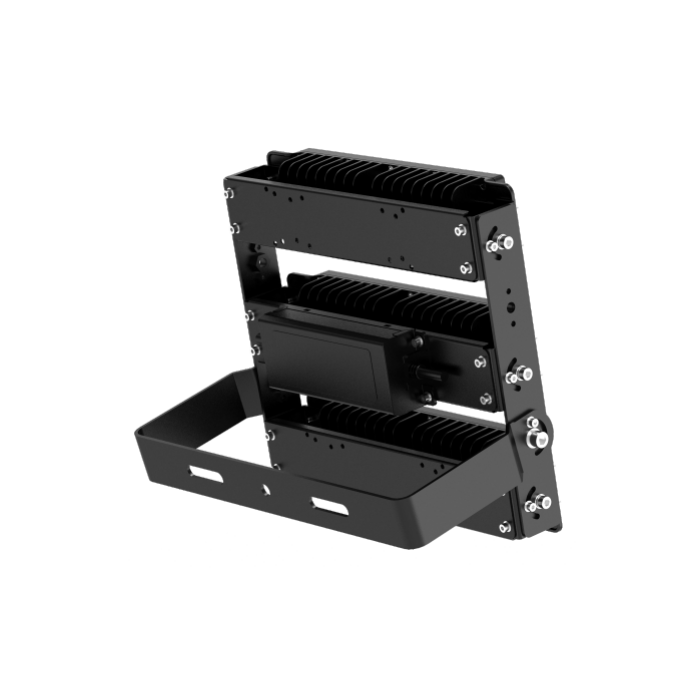

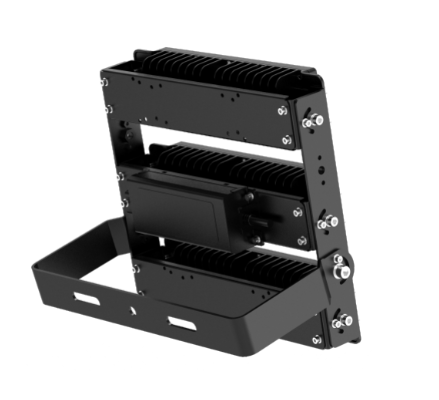

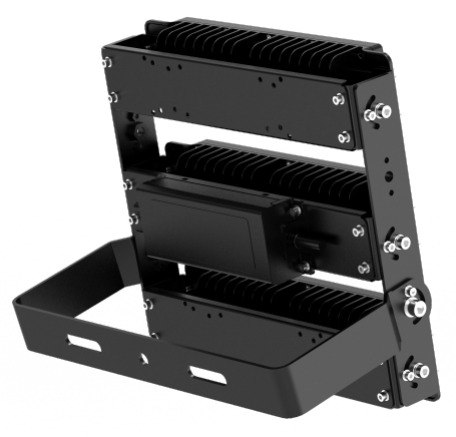

1. Die cast aluminum fan heat exchanger, excellent fan heat performance, compact structure, low temperature difference between lamp panel and radiator

2. Integrated cable slot for simpler cable layout

3. Optical PC lens with a transmittance of up to 94%

4. Brand power supply and driver ensure product quality and lifespan, using reinforced 4mm thick bracket with 180 degree adjustable precision installation, adding glass frame suitable for various harsh environments, and able to withstand typhoon level 17

5. Luminescent angle: 25/35/45/60/90 degrees optional

6. External 10KV lightning arrester provides additional protection against lightning surges

7. Power options: dimming and color adjustment, APP, Bluetooth, and DMX512 intelligent control

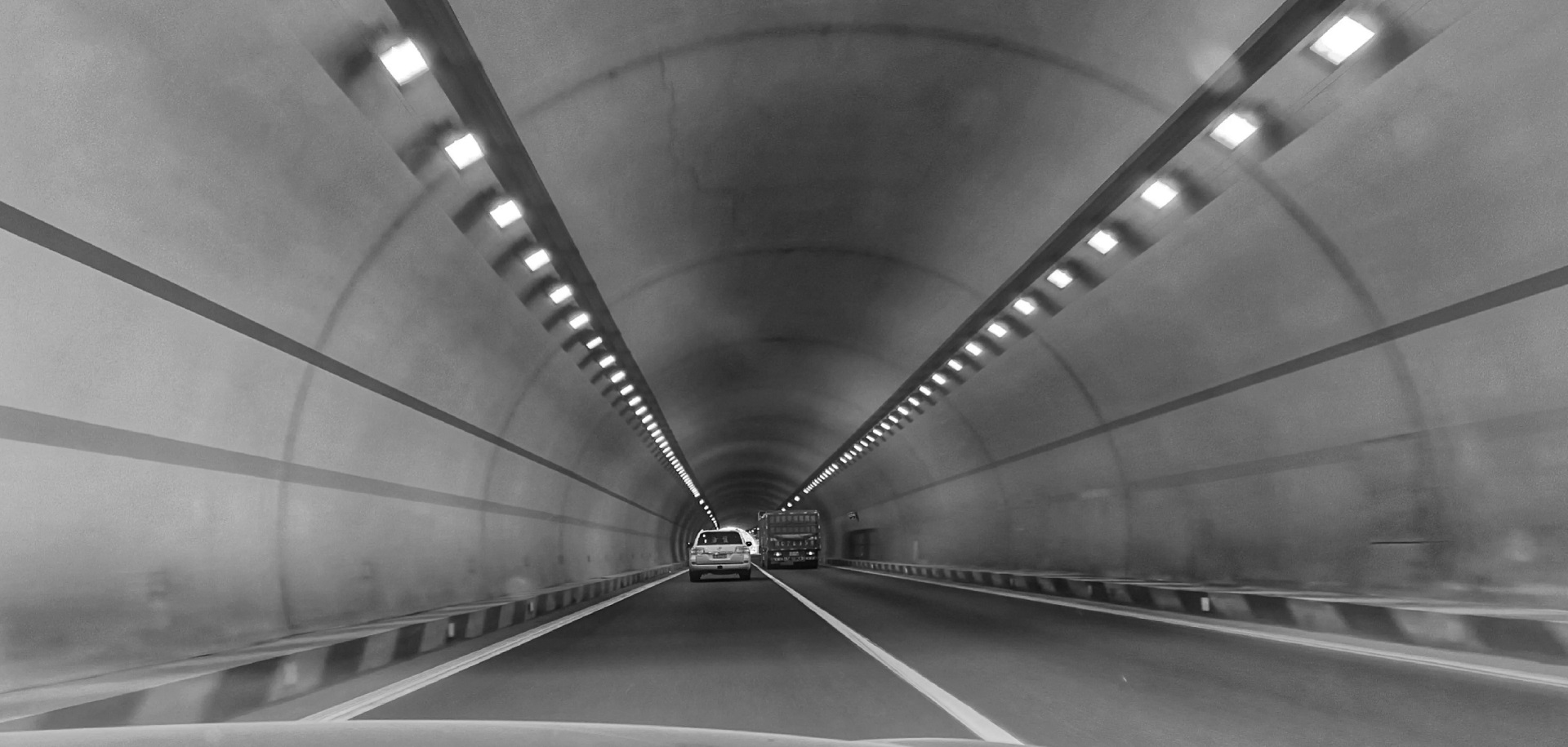

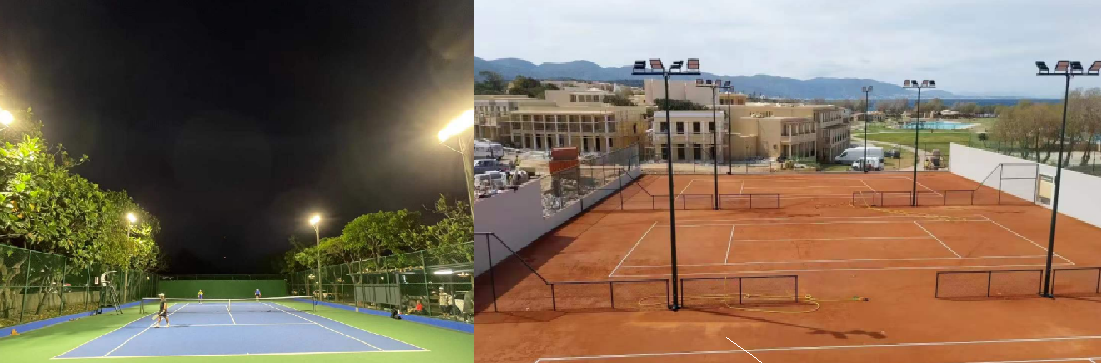

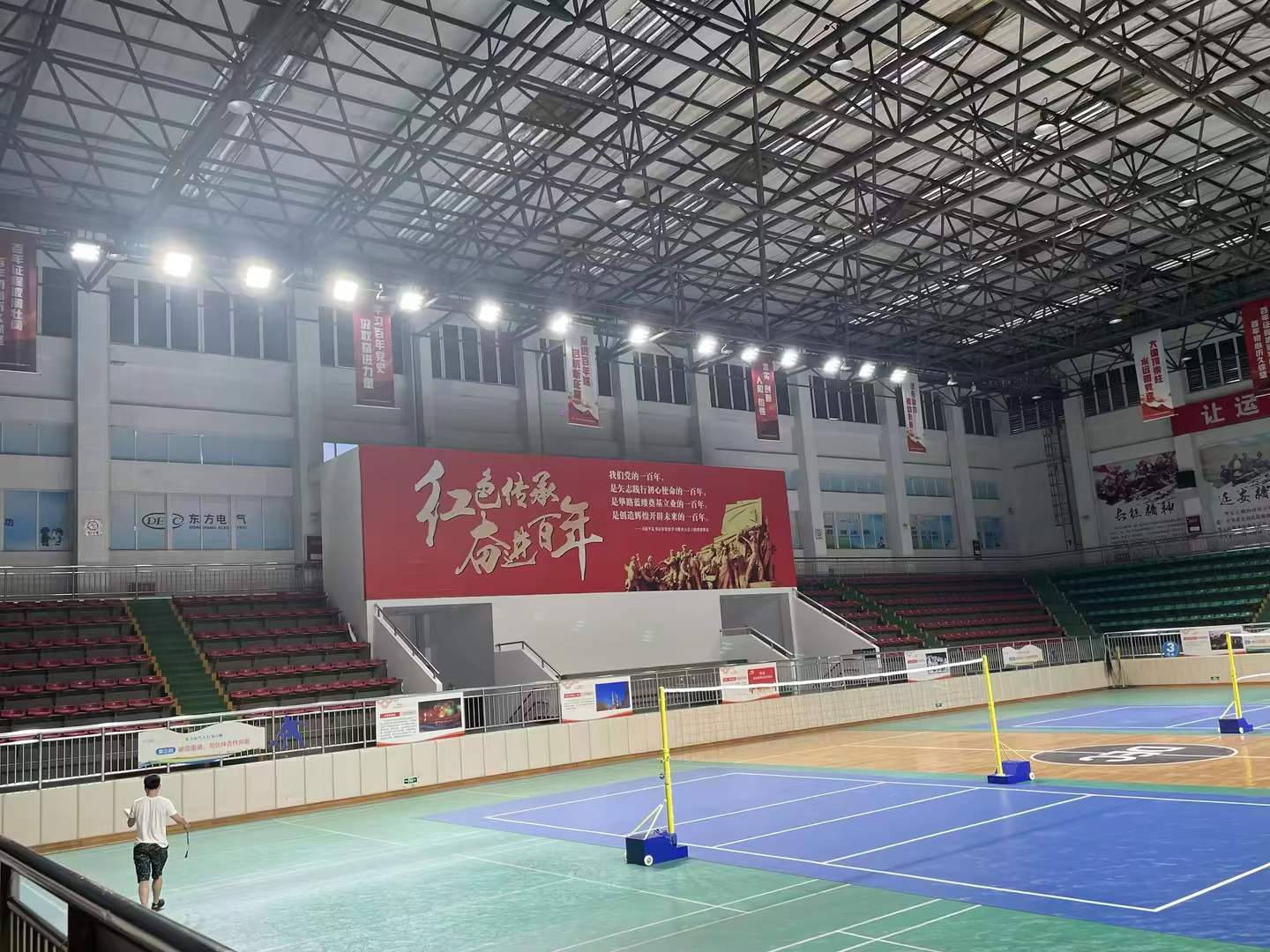

8. Application scenarios: tunnels, stadiums, sports fields, parks, urban anti-aircraft gun lighting, etc

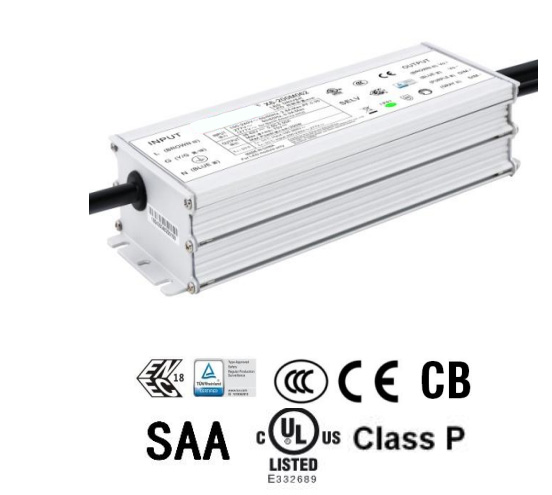

Outdor high power led programmable driver (Optional)

LED driver power supply is a power converter that converts the power supply into a specific voltage and current to drive LED lighting. Generally, the input of LED driver power supply includes high-voltage AC (i.e. mains), low-voltage DC, high-voltage DC, low-voltage high-frequency AC (such as the output of electronic transformers), etc.

The output of LED driver power supply is mostly a constant current source that can change the voltage with the change of LED forward voltage drop value.

The driving power supply, as the "heart" of the lighting fixture, dominates the survival of the fixture. Whether the "electrocardiogram" can operate normally depends on the technical design scheme of each component of the power supply, and the transformer is one of them. The safety of the power supply mainly comes from the transformer, that is, the isolation or reliability of the transformer. For this reason, isolated and non isolated driving power supplies emerged in line with the trend and each held a share in the market.
