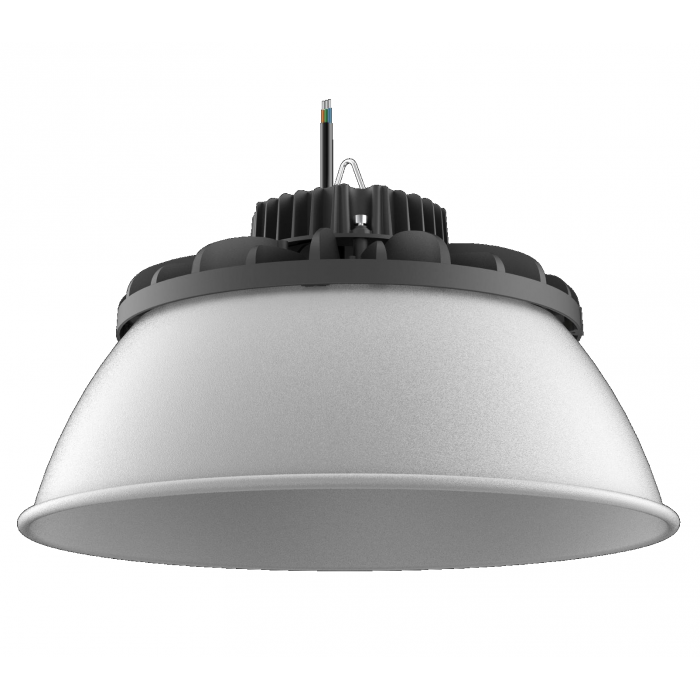

100W, 150W, 200W, 240W LED light UFO High Bay Light I
100W, 150W, 200W, 240W LED light UFO High Bay Light I 100W, 150W, 200W, 240W LED light UFO High Bay Light I 100W, 150W, 200W, 240W LED light UFO High Bay Light I 100W, 150W, 200W, 240W LED light UFO High Bay Light I 100W, 150W, 200W, 240W LED light UFO High Bay Light I 100W, 150W, 200W, 240W LED light UFO High Bay Light I

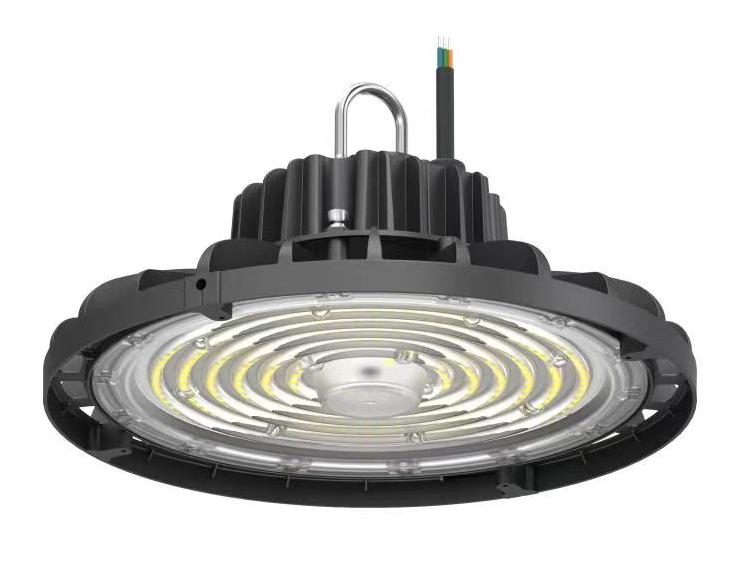

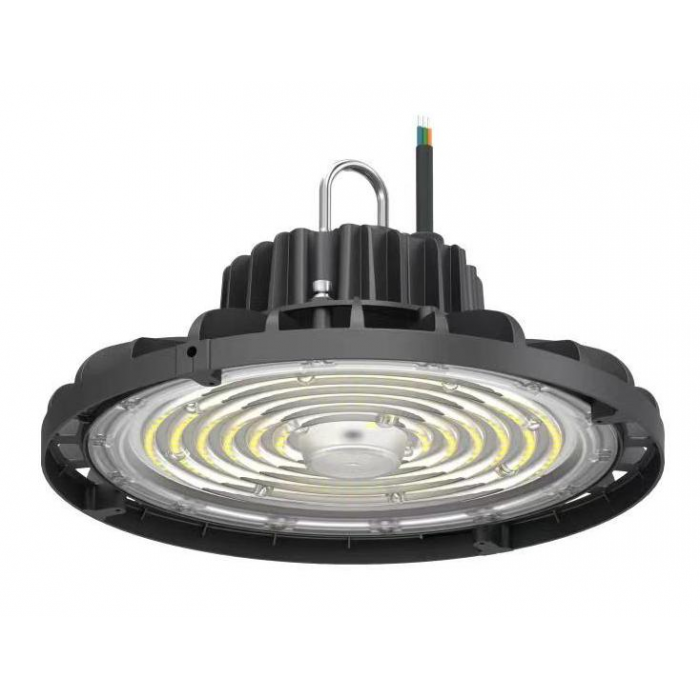

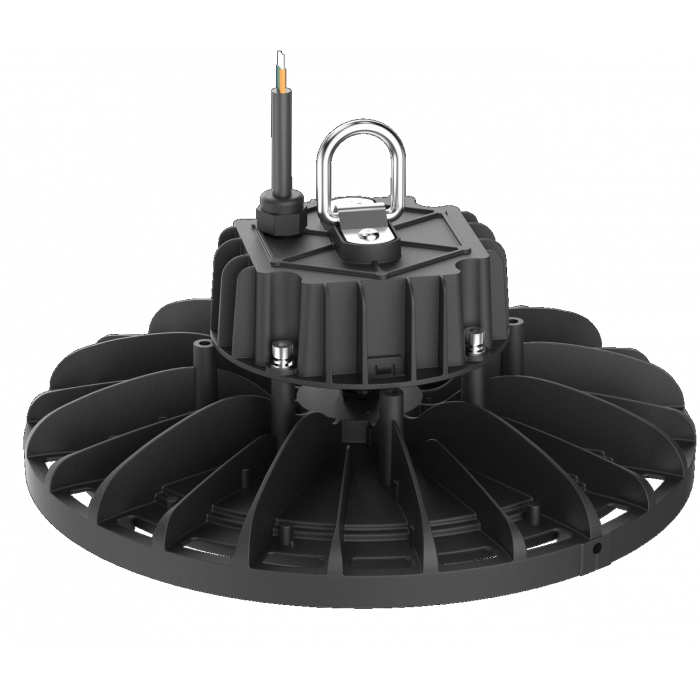

100W, 150W, 200W, 240W LED light UFO High Bay Light I

1.100W, 150W, 200W, 240W, the first generation industrial and mining UFO lamp, with integrated die casting of fan and heat exchanger, has high structural stability and good thermal conductivity

2. Input voltage: AC85-277V 50/60Hz. The light source adopts high luminous efficiency 2835 beads, with a luminous efficiency of 150lm/above and a color temperature of 3000K-6500K

3. The shell fan heat exchanger uses ADC12 die cast aluminum with good thermal conductivity, and the surface undergoes special oxidation and thermal treatment to improve the heat generated by the lamp panel and power supply inside the lamp. It can quickly export the heat outside the lamp, reduce the temperature difference, and lower the junction temperature of the light source, ensuring a 3% light attenuation of the light source and a lifespan of over 50000 hours

4. Waterproof level: IP65, power factor 0.95, multiple beam angles optional, can be used normally in environments ranging from -25 ° C to -50 ° C



Contact us

Features Parameters Product Tags
Features

Efficacy: Up to 150 Lm/W

LEDBrand: Philips/AMTC
driver: Lyford/MOSO （Optional）
Beam angle: 60°/90°/120°
IP rated: IP65
Controls: 0-10V Dimming/MicrowaveInstallation: Hanging hook/Bracket
Product Certificate:
Application
Warehouses, libraries, workshops, shopping malls, supermarkets, shops, restaurants, sports centers, cinemas, hospitals, clothing
stores, bars and other indoor lighting places.

Warranty: 5 years

CE, RoHS , ETL

Parameters

Product Specifications:

SKU

UHB-Ⅳ-100

UHB-Ⅳ-150

UHB-Ⅳ-200

UHB-Ⅳ-240

Watts

100W

150W

200W

240W

Initial Luminous Flux

15000 lm

22500 lm

30000 lm

36000 lm

Luminous Efficiency

150 lm/w

Power Factor

>0.95

Input Voltage

176-264V AC/110-277V AC

CCT

3000K-6500K

CRI

≥70

Beam Angle

60°/ 90°/120°

Housing Color

Black

Housing Material

Aluminum, PC & Glas

Working Environment

-30°C to +50° 10% to 90% R

Lifespan

>50000 hrs

Warranty

5 years


Packing Information - （Independent packing）


SKU

PCS/CTN

N.W

G.W

Volume

UHB-Ⅳ-100

1

1.5 kg

1.8 kg

L270*W270*H155 mm

UHB-Ⅳ-150

1

2.0 kg

2.4 kg

L310*W310*H160 mm

UHB-Ⅳ-200

1

2.4 kg

2.8 kg

L350*W350*H165 mm

UHB-Ⅳ-240

1

2.4 kg

2.8 kg

L350*W350*H165 mm


UHB IV High Bay Datasheet:

Mounting Accessories：





Product name: Triangle Hook Material: stainless steel + IIron Galvanizing Bear the weight; 30 kg

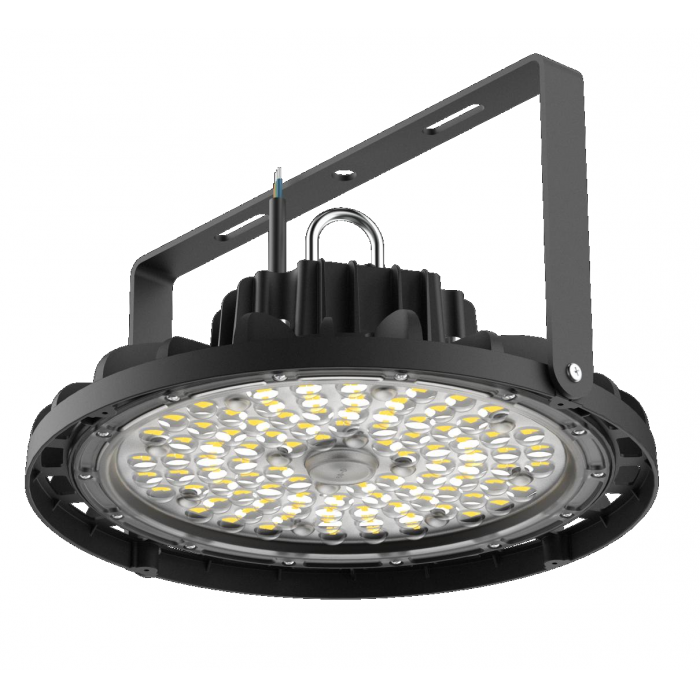

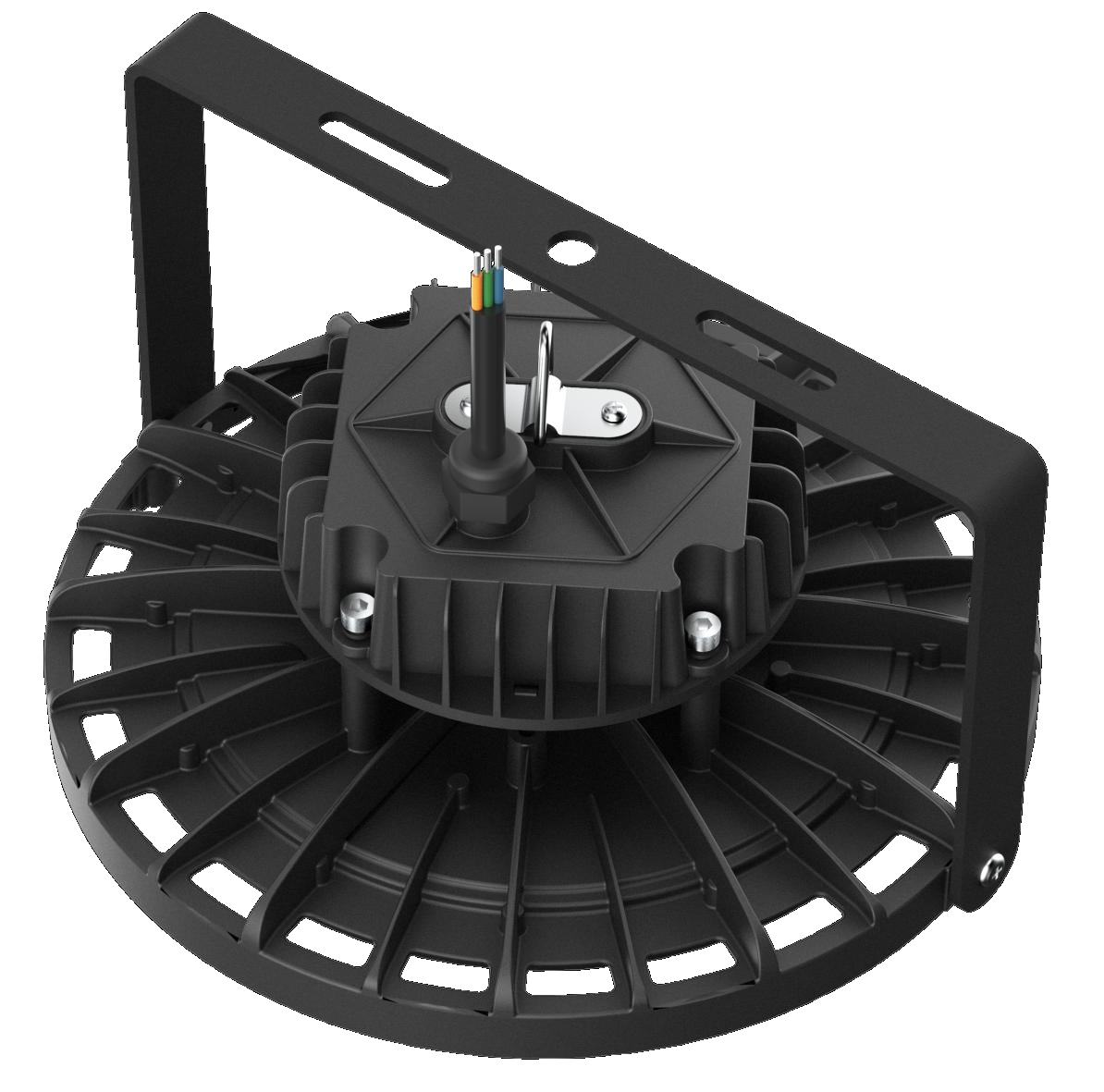

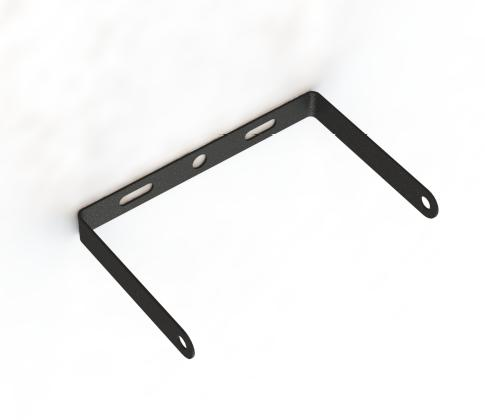

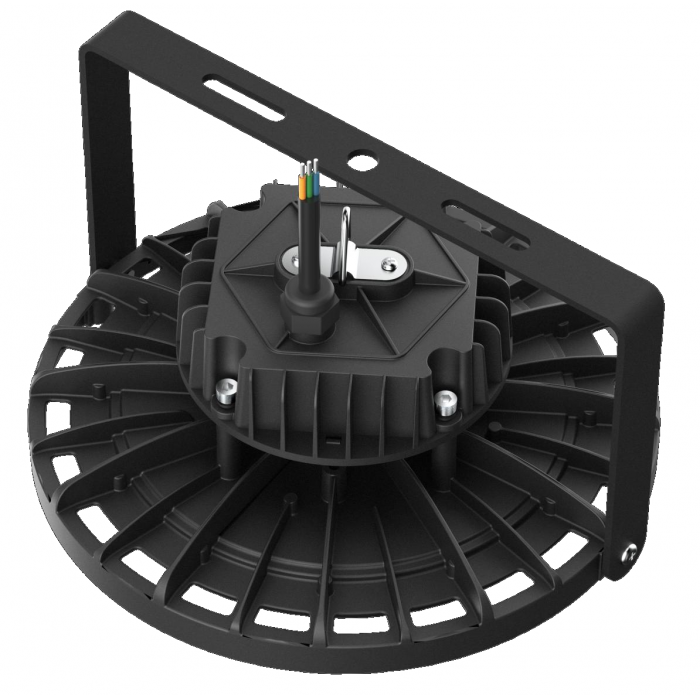

roduct Name: bracket

Features: mounting

Color: black

Size1:L249*W160*H24 mm Size2:L294*W160*H24mm



Material: iron

Weight Bearing: < 60kg

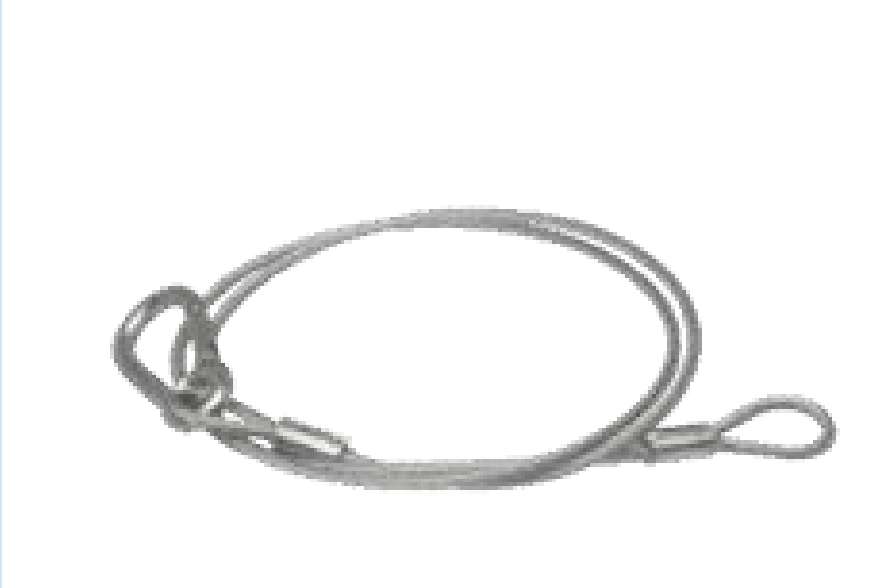

Product Name: safety rope Features: fall protection

Color: silver

Size: Ø1.2*L400 mm

Material: stainless steel

Weight Bearing: < 40kg

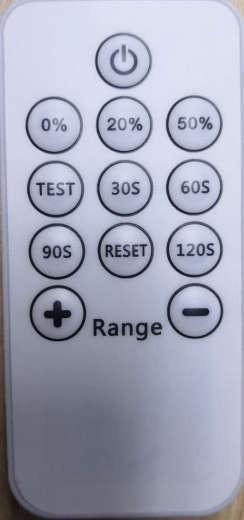

Remote control, White / plastic

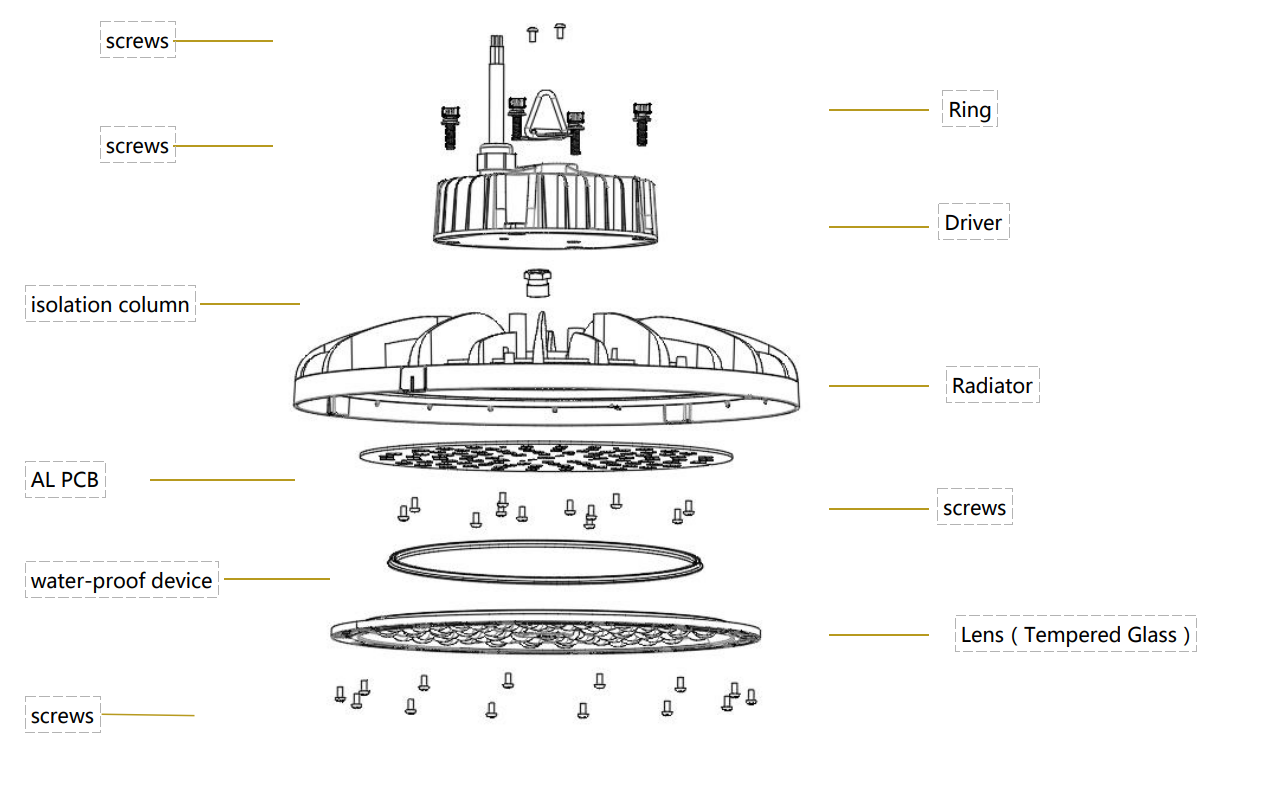

Expiosion Diagram：

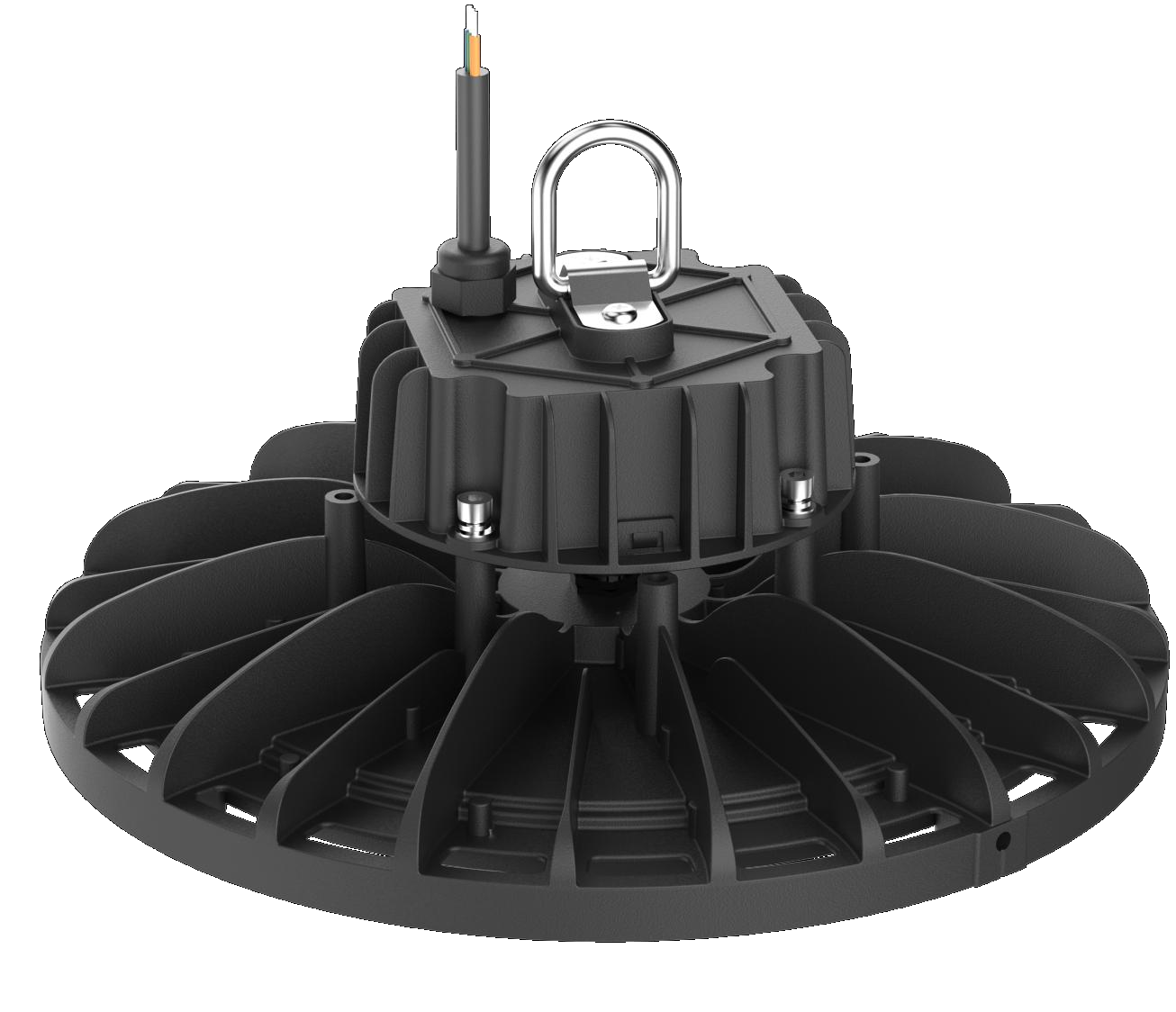

200W led light

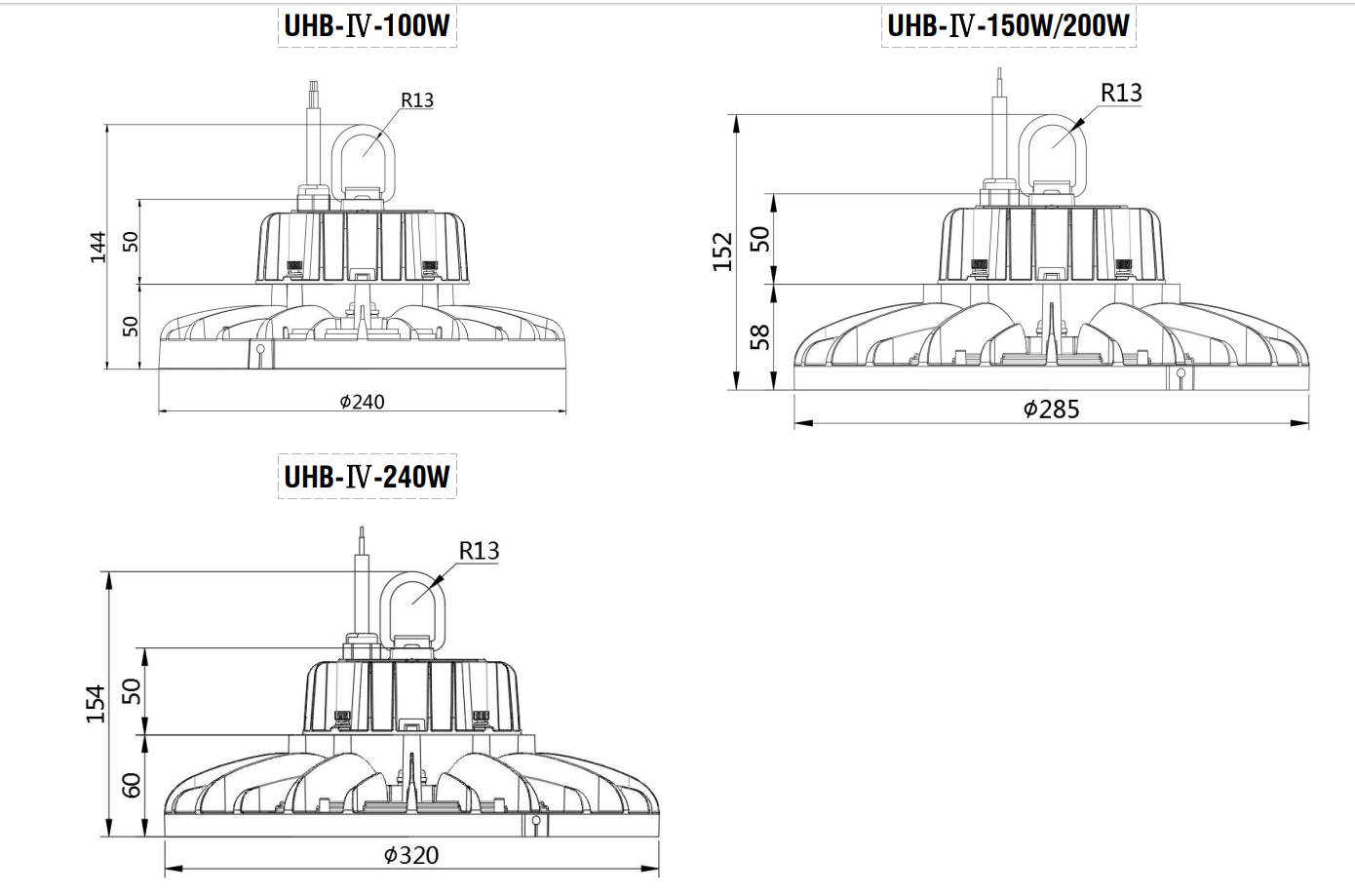

Dimension (unit: mm)(Lamp Body)


LED high bay light UFO light

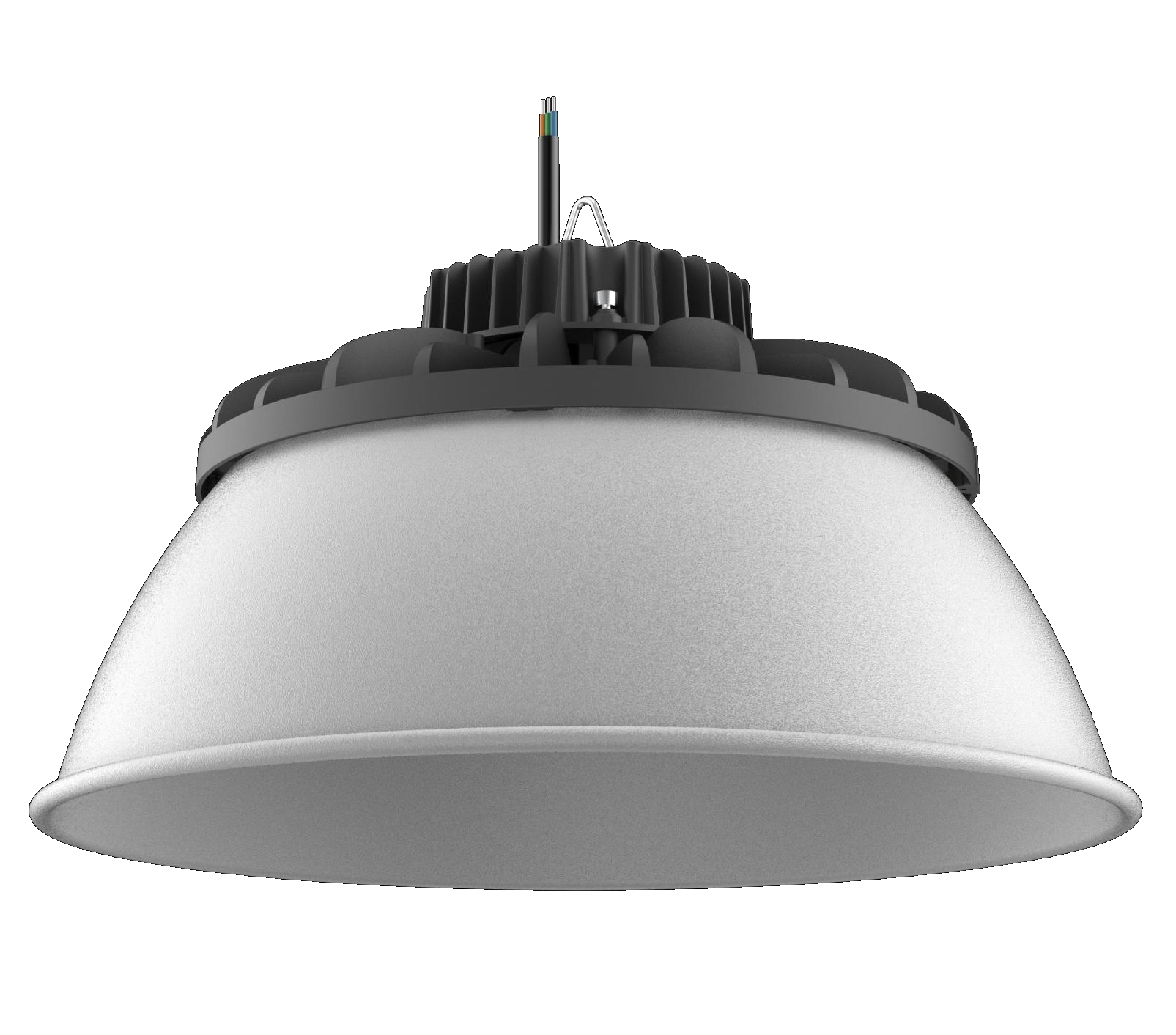

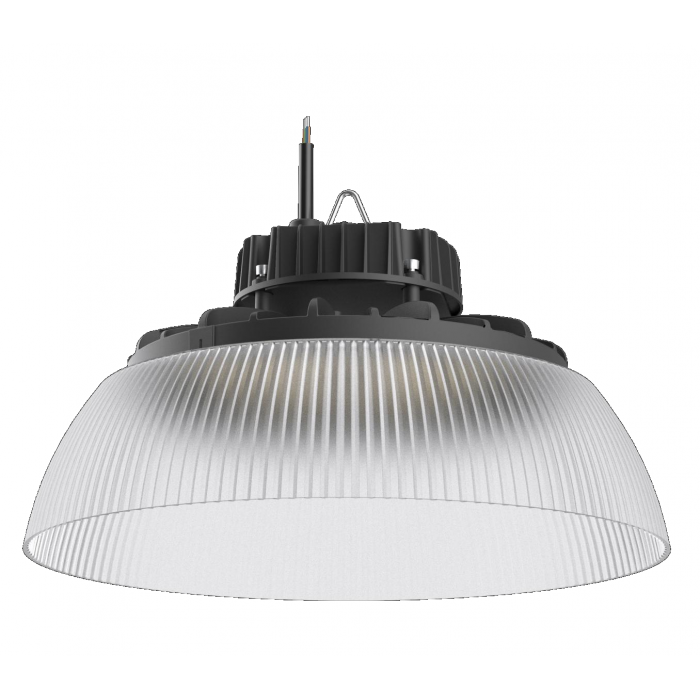

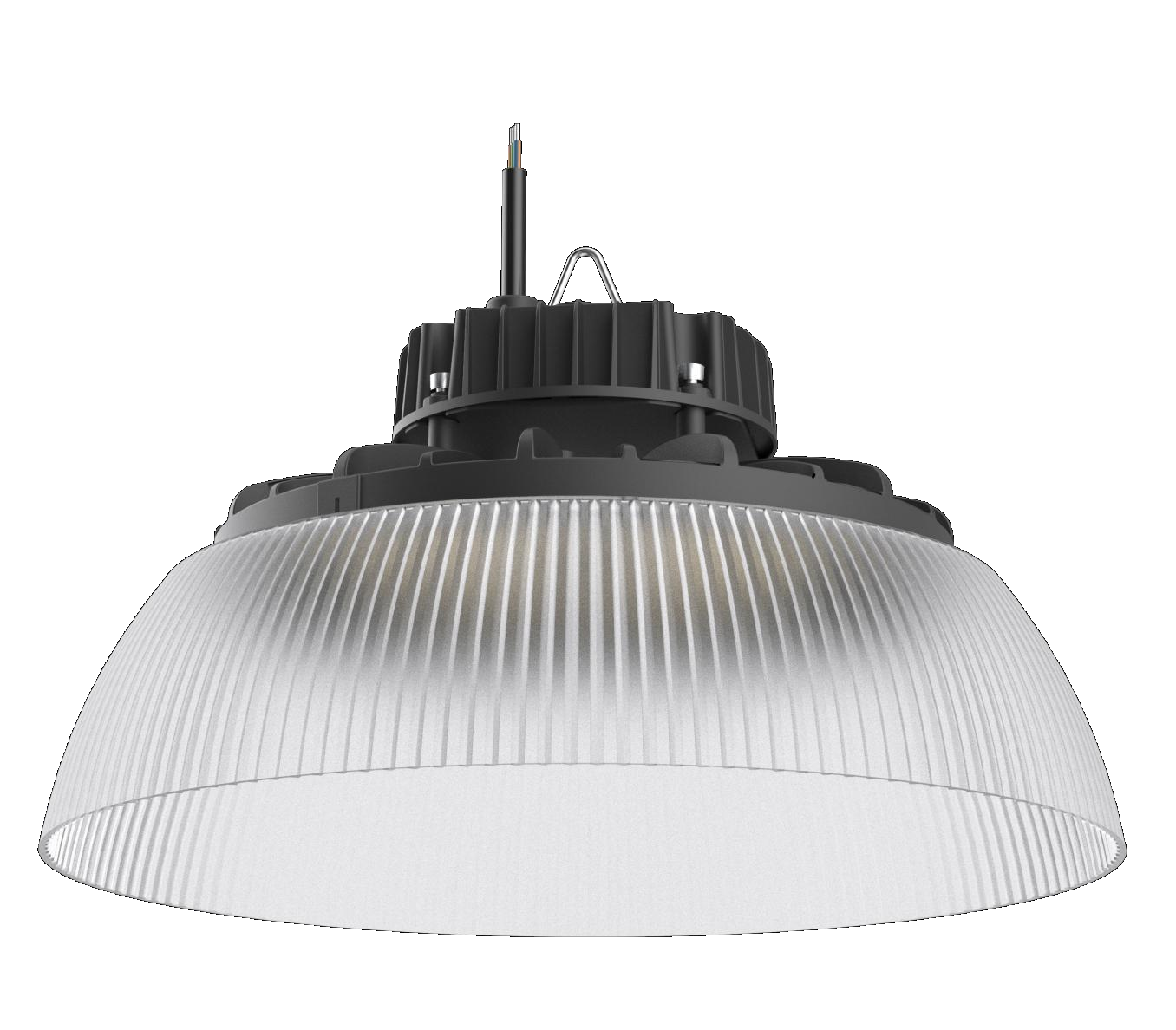

(Lamp Body+PC cover)

PC lamp cover

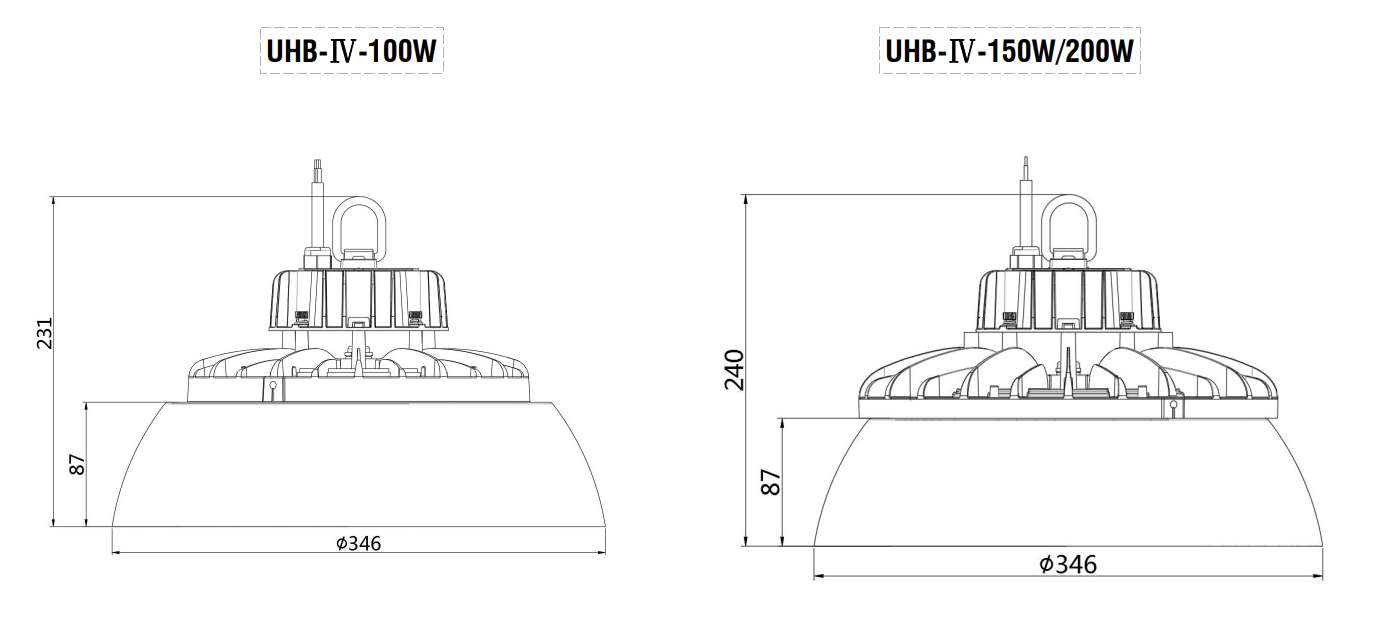

Dimension (unit: mm)(Lamp Body+PC cover)

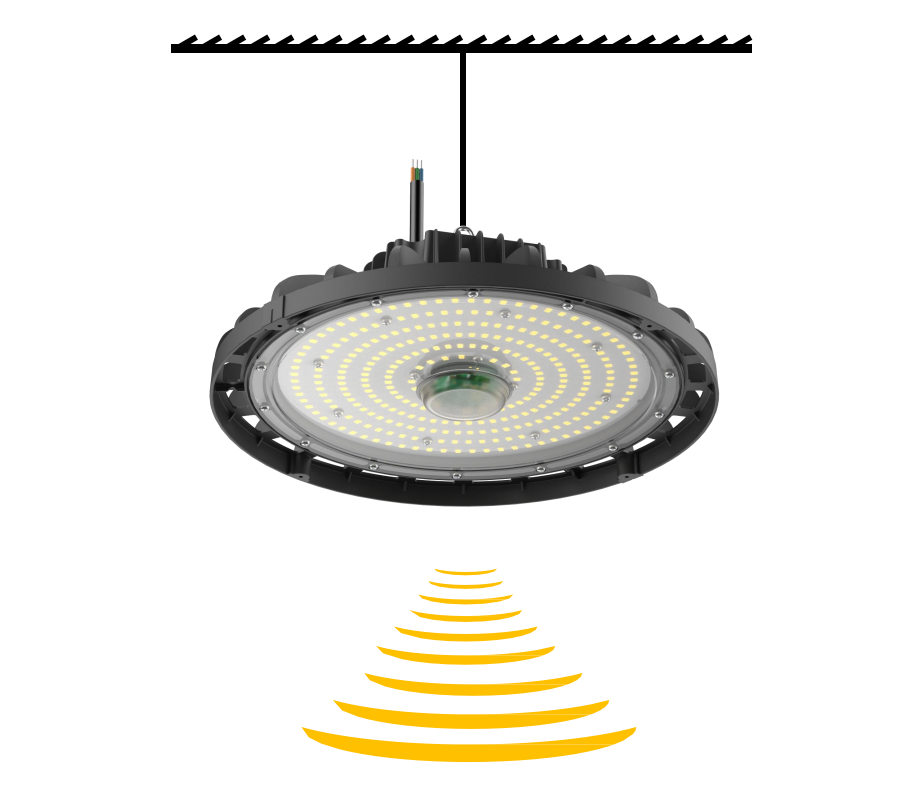

Microwave sensors indicate

Not recommended for outdoor use. Rain can trigger it by mistake.
They become less responsive to objects moving at constant speed.
No vibration in the mounting position.
Require power supply ripple less than 100mv .
The range and angle of the sensor will be affected by the surrounding environment.

Microwaves have a penetrating effect, but not through reinforced concrete walls or metal objects. Single core wire is recommended for terminal.
