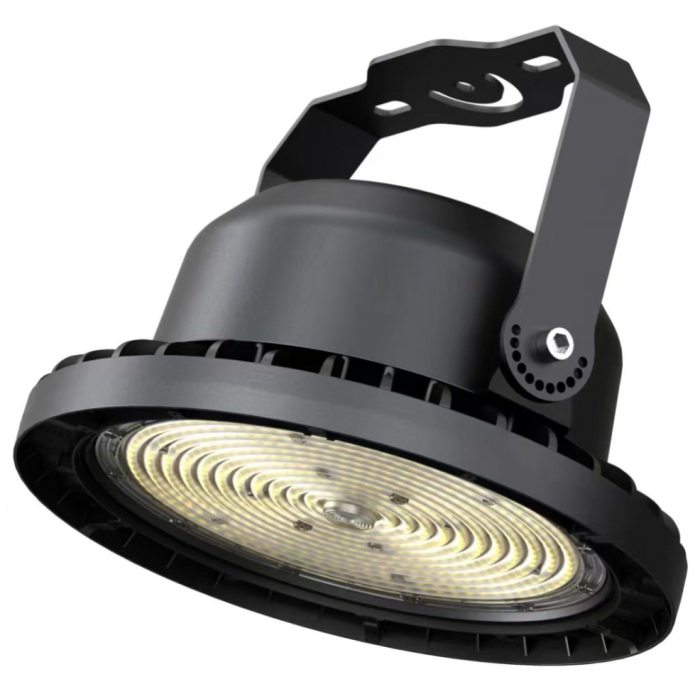

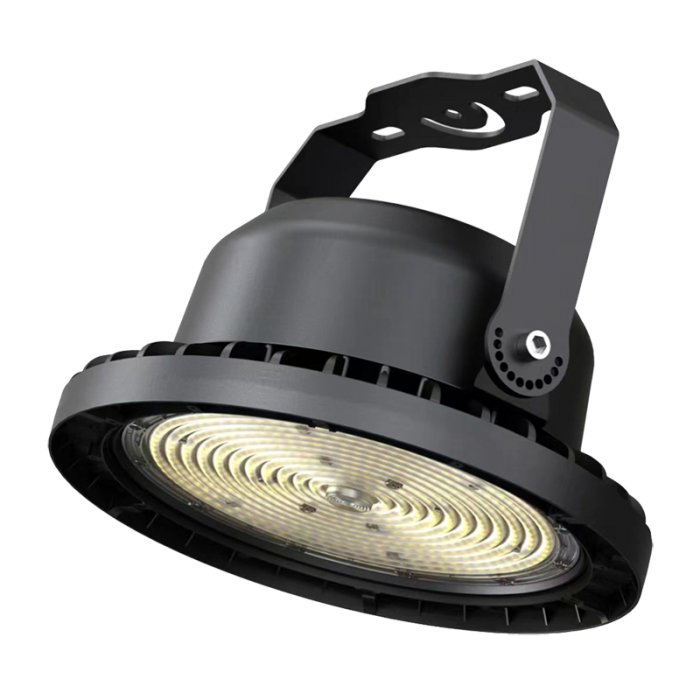

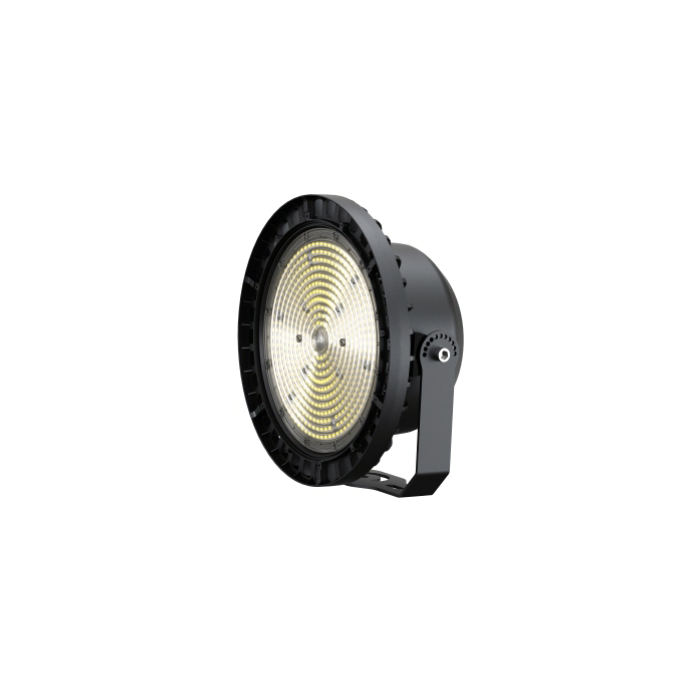

High power High Bay LED 300W 400W industrial multi founction light

Features Parameters Product Tags

Features

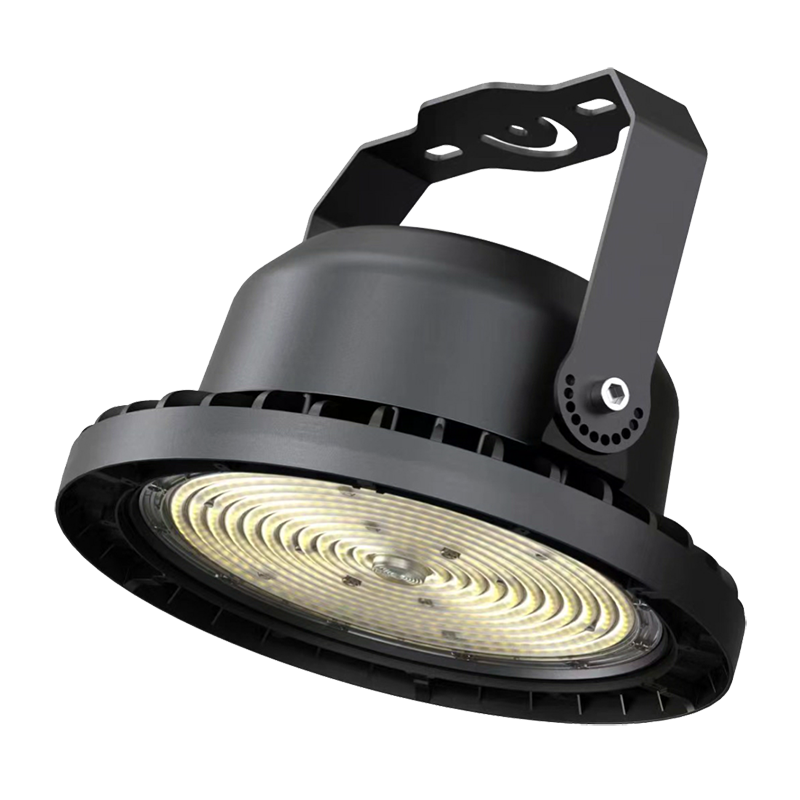

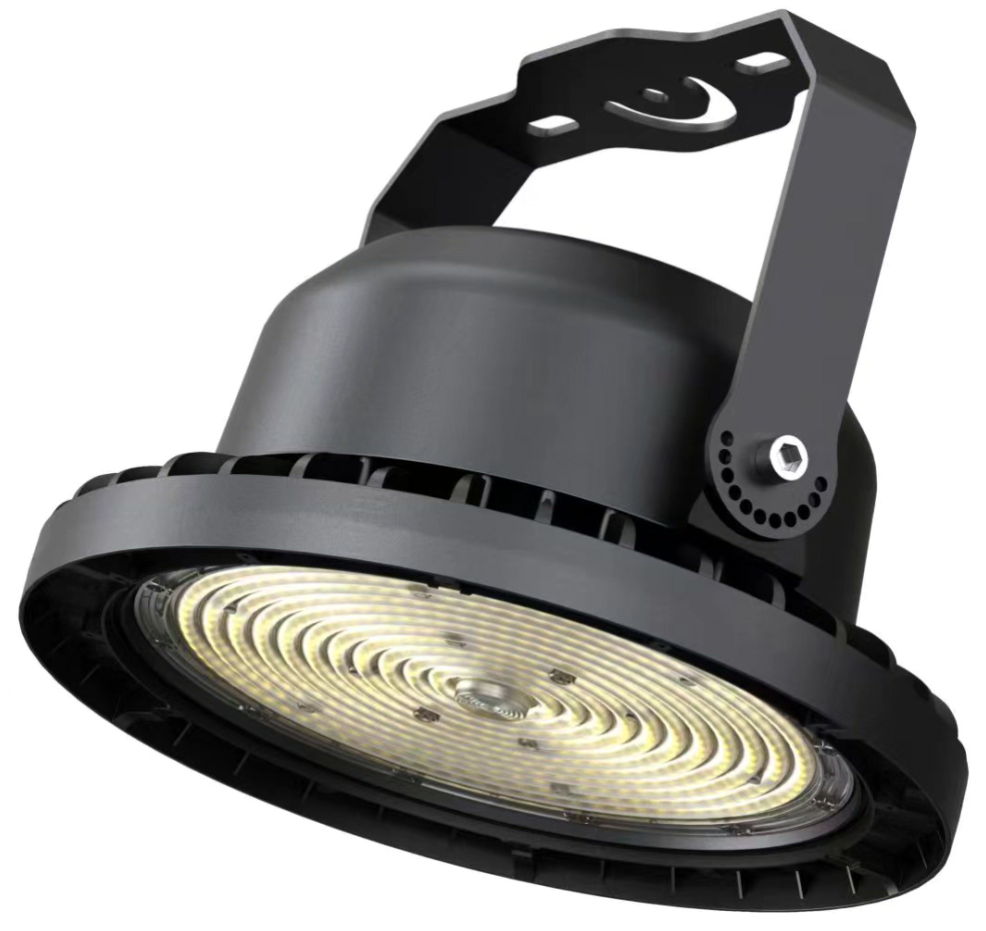

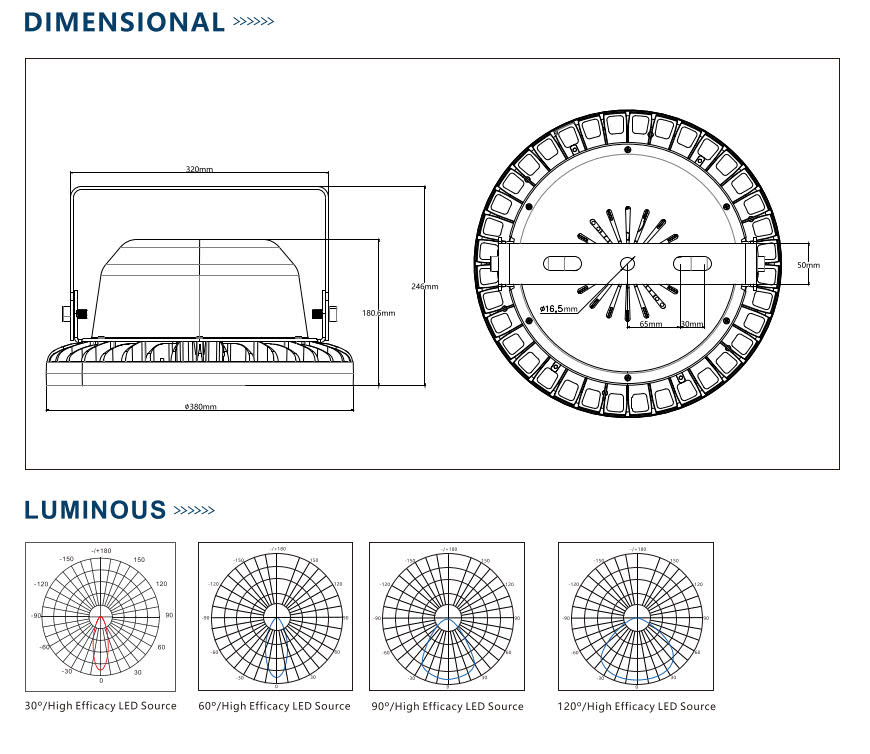

High power high bay LED light | youcolight

Adopting die cast aluminum material ADC12 light body, looking Mechanical feeling,good performance of heat dissipation effect. Durable

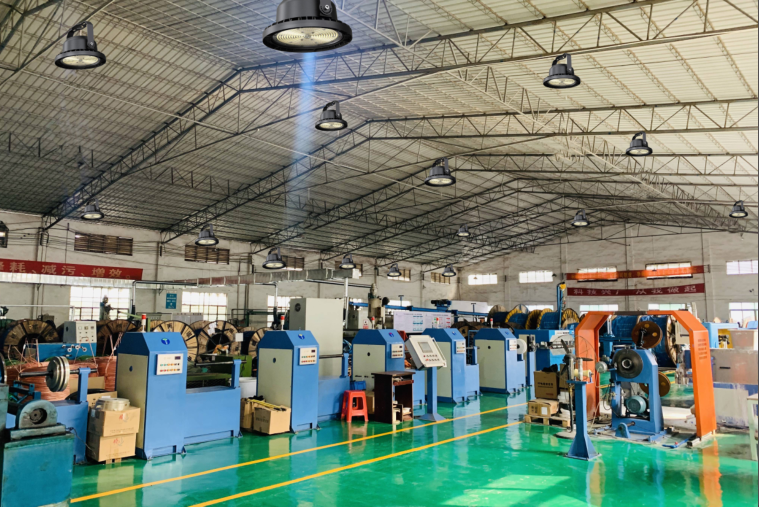

Multiple installation methods, and Multiple application speace. as warehouse, parking lot, sports ground etc.

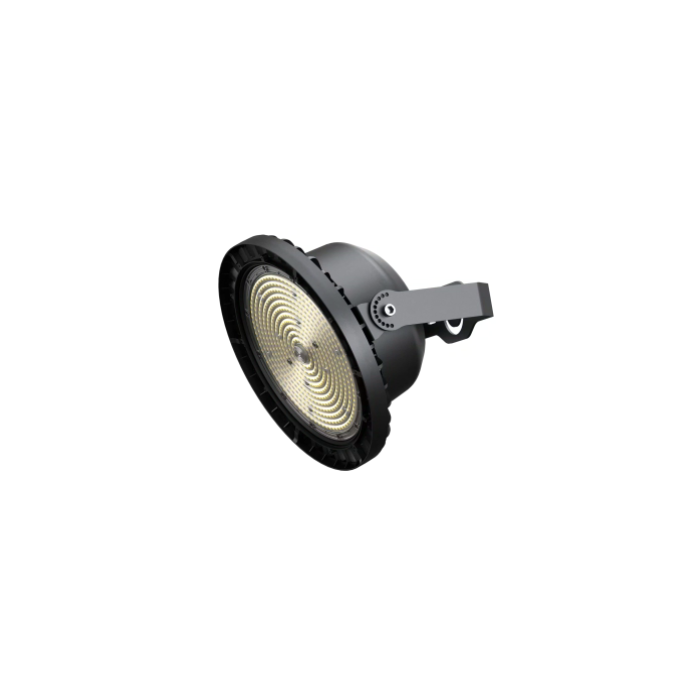

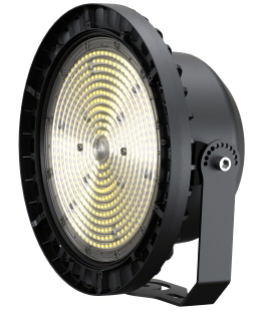

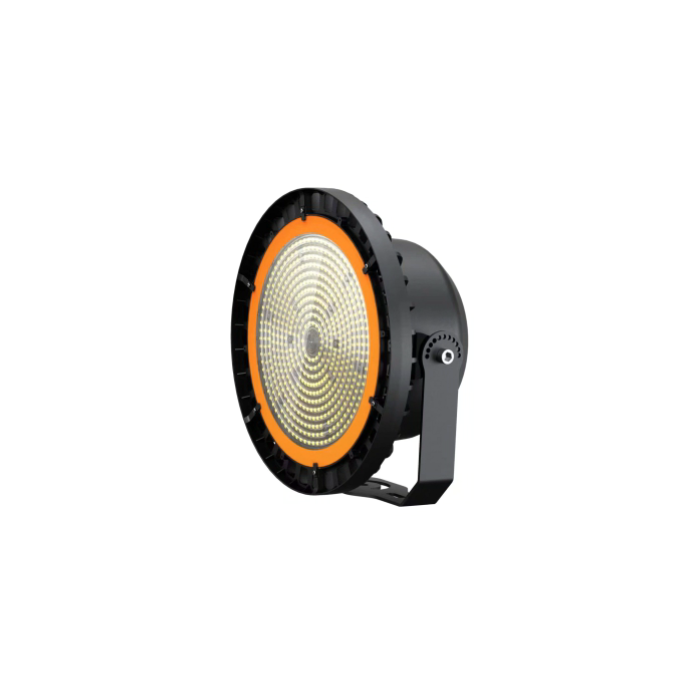

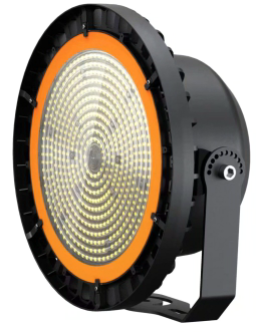

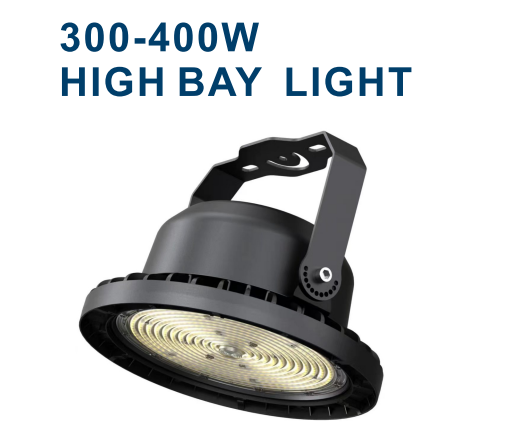

high power industry LED light | youcolight

Salt Fog Standard, our Youco light's High power High Bay LED light's metal body Adopting AkzNobel ourdoor powder Surface spraying reach SALT fog standard ISO 9227 and ASTM B117, and the salt fog standard,and the Salt Fog according Corrosion is the damage or deterioration caused by the action of the environment on a material or its properties. Most corrosion occurs in the atmospheric environment, which contains corrosive components and factors such as oxygen, humidity, temperature changes, and pollutants. Salt spray corrosion is a common and most destructive type

Atmospheric corrosion. The salt mist mentioned here refers to the atmosphere of chloride, and its main corrosive component is the chloride salt sodium chloride in the ocean. and the AkzNobel ourdoor powder surface is effectively sprayed to prevent the corrosion of the lamp body.

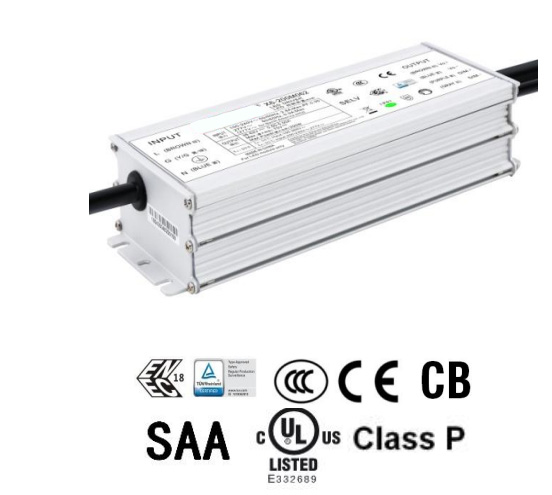

LED Programmable Driver | youcolight

Outdoor Off-line Programmable Driver (Optional)

DESCRIPTION

The X6-200W series is 200W outdoor offline programmable LED driver that operates in constant current with high PF value and universal input voltage range 90~305Vac model. Offline Monitored by dimming cable connected with an USB kit programming device, the fully programmed drivers offer all dimming, dim-to-off, constant lumen output options and a wide range of output current in a single driver, which deliver maximum flexibility with customized operating settings and intelligent control options for lighting manufacturers, as one driver can be programmed for many different luminaire designs. X6 provides built-in timer dimming schedules further increasing the energy savings and CO2 reductions achieved with LED lighting. It also helps clients to improve the management of logistics and stock.The compact metal case and high efficiency enables the driver to operating with high reliability, and extending product lifetime. Overall protection is provided against lightening surge, output over voltage, short circuit, and over temperature, to ensure low failure rate.

MODELS

Model Number :

[1] Max Output Power (W) Output Voltage Range (Vdc) Full Power Output Voltage Range (Vdc) Full Power Current Adjustable Range (A)

[2] Default Output Current Setting(A) Typical Efficiency

[3] Power Factor 230Vac X6-200Y062 200 38-62 40-62 3.23-5.0 4.9 92% 0.97

Notes:

[1]. Y can be M or V, Y=M means dimmable and offline programmable. The adjustable Iout range: 10%-100% Imax, Y=V means non-dimmable andoutput current adjusted by built-in potentiometer.

[2]. Output current adjustable range with constant power at max output power.

[3]. All specifications are measured at 25℃ ambient temperature, input voltage 230Vac, and the typical value tested by full load, if no specific note.

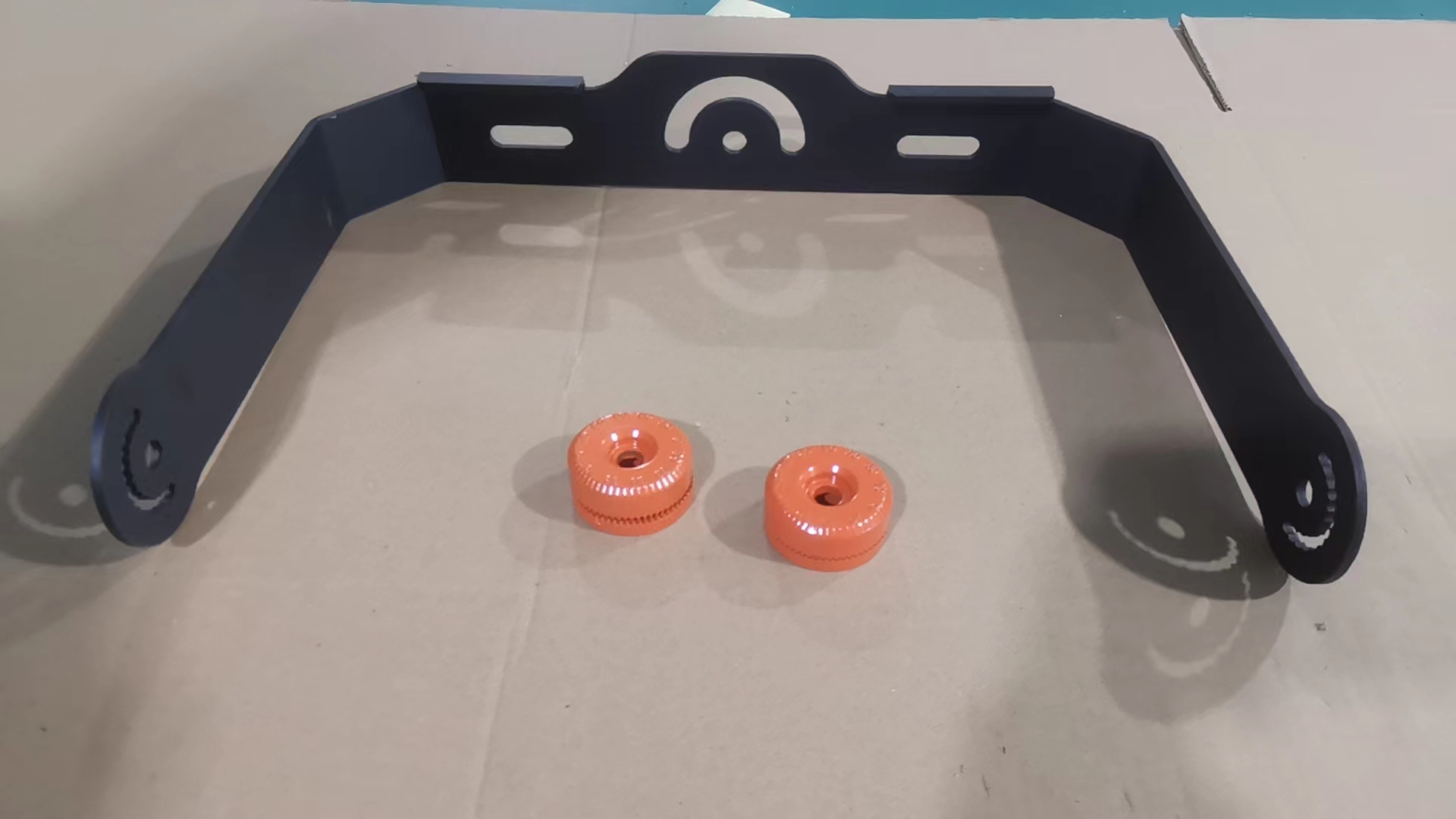

Installation accessories:

high power LED light installation accessories | youcolight

Parameters

Product Mode	XJX-300W	XJX-400W
Input Voltage	AC100-277V 50/60Hz	AC100-277V 50/60Hz
SDCM	＞ 5 SDCM	＞ 5 SDCM
Rated Voltage	300W	400W
light sources	1200pcs 2835	1200pcs 2385
Power factor	＞ 0.95	＞ 0.95
Light source brand	Lumileds	Lumileds
Luminous flux	45000Lm±5%	6000Lm±5%
CRI	Ra≥80(≥70)	Ra≥80(≥70)
color temperature	3000-6500K	3000-6500K
luminous angle	30°/60°/90°/120°	30°/60°/90°/120°
Drive power	MW/PHILIPS/SOSEN	MW/PHILIPS/SOSEN
Harmonics	＜10%	＜10%
Crashworthiness	1k08	1k08
Protection class	IP65	IP65
Service life	50000Hrs	50000Hrs
Product size(mm)	L405*W400WH80MM	L405*W400WH80MM
N.W	4.2kgs	4.8kgs
G.w	4.8kgs	5.4kgs
